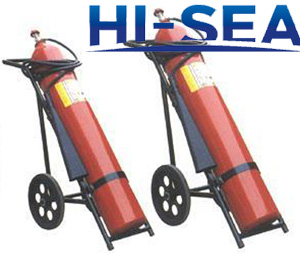

Wheeled carbon dioxide fire extinguishers
[Search Related Products]
Wheeled carbon dioxide fire extinguishers/Carbon Dioxide
When selecting appropriate fire protection, a wheeled extinguisher offers a higher fire fighting capability and fire rating and the need for portability. Portable fire extinguishers are defined as those which are less than 50kg and can be carried by most able bodied people. Wheeled fire extinguishers on the other hand are a larger version of standard portable fire extinguishers and are used to cover larger scale fire risks in larger expanses. These are usually structured on a wheeled trolley unit to enable maneuverability and ease of use.
Product detail:
1. Fire Fighting Extinguisher of co2;
2. Wheeled type
3. Single type/ Double type
4. Color can be made as special requirements
5. ISO/ CE certificate
6. temperature Range: -20-60
7. Material: CK45/37Mn
Wheeled carbon dioxide fire extinguishers parameter
Capacity |
10kg (2x5kg) |
10kg(1x10kg) |
20kg (1x20kg) |
25kg(1x25kg) |
30kg (1x30kg) |
50kg (2x25kg) |
Item No. |
HSE23-01 |
HSE23-02 |
HSE23-03 |
HSE23-04 |
HSE23-05 |
HSE23-06 |
Out-Dia.(mm) |
152 |
152 |
219 |
219 |
232 |
219 |
Volume(L) |
15 |
15 |
33.5 |
40 |
46 |
80 |
Cylinder Length(mm) |
570 |
1070 |
1160 |
1330 |
1370 |
1330 |
Cylinder Weight(kg) |
25 |
25 |
50 |
56 |
57 |
127 |
Extinguisher Weight(kg) |
50 |
46 |
100 |
110 |
117 |
207 |
Filled Weight(kg) |
10 |
10 |
20 |
25 |
30 |
50 |
Temperature Range |
-20-60 |
-20-60 |
-30-55 |
-30-55 |
-30-55 |
-30-55 |
Working Pressure(bar) |
174 |
174 |
150 |
150 |
150 |
150 |
Test Pressure(bar) |
250 |
250 |
225 |
225 |
225 |
225 |
Min Wall-Thickness(mm) |
5.5 |
5.5 |
5.7 |
5.7 |
5.4 |
5.7 |
Material |
CK45 |
CK45 |
37Mn |
37Mn |
37Mn |
37Mn |
Fire Class |
183B |
183B |
233B |
233B |
233B |
233B |
Packing Size(cm) |
30x46x85 |
46x30x120 |
102x48x122 |
102x48x122 |
118x55x124 |
123x62x132 |
