Portable CO2 Fire Extinguisher
[Search Related Products]
Portable CO2 Fire Extinguisher
It's an environment protection, good electrical insulation and great efficiency in extinguishing fire, widely used in the fire protection of power distribution, archive rooms, transforming houses, computer rooms, etc. CO2 is a clean gaseous agent which displaces oxygen. Highest rating for 20 lb (9.1 kg) portable CO2 extinguishers is 10B:C. Not intended for class A fires, as the high-pressure cloud of gas can scatter burning materials. CO2 is not suitable for use on fires containing their own oxygen source, metals or cooking media.
Product detail:
Brand Name: CO2 fire extinguisher
Certification: CE/EN3
Color: Red/ Black or you want
Material: Carbon steel/Alloy Steel/Portable CO2
Size: 1kg 2kg 2.3kg 3kg 4kg 4.5kg 5kg 6kg 7kg 9kg
Temperature range (ˇăC): -20~+60
Portable CO2 Fire Extinguisher parameter
Product Name |
CO2 5kg |
CO2 5kg |
CO2 2kg |
CO2 2kg |
CO2 2kg |
Out-diameter(mm) |
136 |
136 |
104 |
104 |
116 |
Cylinder high(mm) |
655 |
660 |
480 |
480 |
384 |
Cylinder weight(kg) |
7.66 |
8.28 |
3.78 |
4.13 |
3.81 |
Extinguisher weight(kg) |
14.8 |
15.5 |
6.84 |
7.29 |
6.91 |
Volume(L) |
7.5 |
7.5 |
3 |
3 |
3 |
Filling Weight(kg) |
5kg CO2 |
5kg CO2 |
2kg CO2 |
2kg CO2 |
2kg CO2 |
Temperature range(ˇăC) |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
Max working pressure(bar) |
174 |
174 |
174 |
174 |
174 |
Test pressure(bar) |
250 |
250 |
250 |
250 |
250 |
Material |
34CrMo4 |
34CrMo4 |
34CrMo4 |
34CrMo4 |
34CrMo4 |
Min wall-thickness(mm) |
2.78 |
2.78 |
2.29 |
2.29 |
2.38 |
Fire class |
89B |
89B |
34B |
34B |
34B |
Bottom of cylinder |
concave |
Convex |
concave |
Convex |
concave |

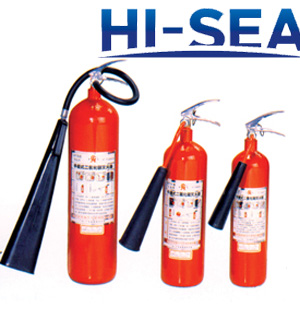

photo of Portable CO2 Fire Extinguisher
