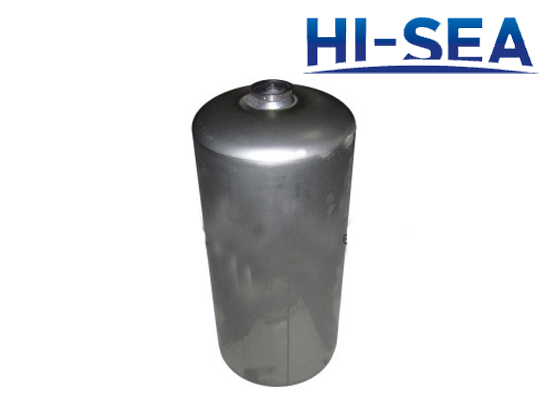

Aluminum Fire Extinguisher Cylinder

Aluminum Fire Extinguisher Cylinder

Aluminum Fire Extinguisher Cylinder is made of high strength Aluminum Alloy 6061, reliable on durability, fracture tough, it has resistance to tearing and cracking. This high-quality, high-performance aluminum fire extinguisher cylinder is widely used around the world.

We have CE, EN3, EN1869, EN694, EN671 and AS/NZ approvals for our products. All of our products are manufactured and tested under the standard of ISO9001, CE, EN3, etc. We also could provide OEM service to meet customer’s special requirements. For example, we can print customer’s company name or logo on the cylinder neck.

Product Details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Material: aluminum alloy

Temperature range: -30 centigrade degree to +55centigrade degree

Color: red/ blue/ or other customized color

Model number: 2-7KG

Main Parameter:

CO2 fire extinguisher	2KG		2.3KG	3KG	4KG	4.5KG	5KG		6KG		7KG
Out-diameter(mm)	114		114	114	133	152	152		152		152
Volume(L)	3		3.5	4.5	4.5	6.72	7.5		9		10.5
Cylinder length(mm)	420		470	600	450	510	570		650		745
Cylinder weight(kg)	4.9		5.6	6.8	7.2	7.55	8.55		10.4		10.85
Min wall thickness(mm)	4		4	4	4.5	5	5		5		5
Max working pressure	16.8bar
Test pressure	25bar
CO2 filled weight	2(-0.1)	2.3(-0.12)		3(-0.15)	3(-0.15)	4.5(-0.22)		5(-0.25)		6(-0.6)	7(-0.35)
Note: We Can Supply Various Fire Extinguisher Cylinder with Different Parameter As Requested

Aluminum Fire Extinguisher Cylinder

Packaging
