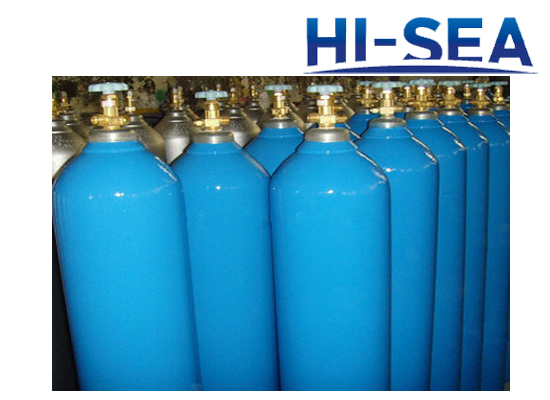

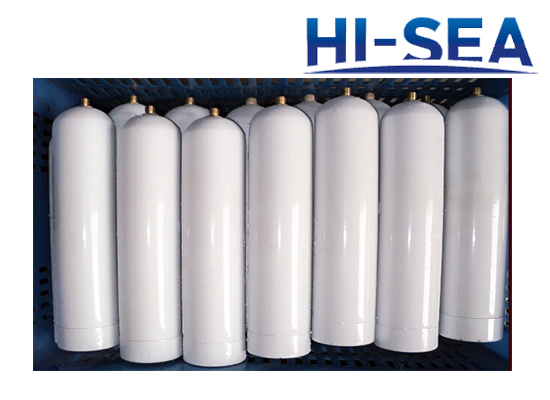

Seemless Steel Cylinder
Seemless Steel Cylinder has reliable quality, clear stamping, consistent height and elegant appearance. We provide large, medium, small sizes high pressure seamless cylinders which range rom 8-35Mpa in working pressure, 4- 145L in water liter. We have CE, EN3, EN1869, EN694, EN671 and AS/NZ approvals for our products. All of our products are manufactured and tested under the standard of ISO9001, CE, EN3, etc. We also could provide OEM service to meet customer¡¯s special special requirements.
Product Details:
Place of origin: Chongqing, China (Mainland)
Brand name: HI-SEA
Material: 37Mn, 34CrMo4
Standard: GB5099-94, ISO9908-1
Color: red/ blue/ or other customized color
Pressure: high
Water capacity: 36-50L gas cylinder
Main Parameter:
1. ISO 9808 Steel Cylinder
Material |
Diameter (mm) |
Capacity(L) |
Height (mm) |
Working Pressure (Mpa) |
Test Pressure (Mpa) |
Standard |
37Mn |
232 |
50 |
238 |
15 |
22.5 |
GB5099-94 |
34CrMo4 |
232 |
36 |
320 |
20 |
30 |
ISO9908-1 |
34CrMo4 |
232 |
40 |
317 |
20 |
30 |
ISO9908-1 |
34CrMo4 |
232 |
46.7 |
390 |
20 |
30 |
ISO9908-1 |
34CrMo4 |
232 |
47 |
385.8 |
20 |
30 |
ISO9908-1 |
34CrMo4 |
232 |
50 |
485 |
20 |
30 |
ISO9908-1 |
37Mn |
219 |
40 |
470 |
15 |
22.5 |
ISO9908-3 |
37Mn |
132 |
40 |
372 |
15 |
22.5 |
ISO9908-3 |
37Mn |
232 |
46.7 |
458 |
15 |
22.5 |
ISO9908-3 |
37Mn |
232 |
47 |
524 |
15 |
22.5 |
ISO9908-3 |
37Mn |
232 |
50 |
593 |
15 |
22.5 |
ISO9908-3 |
2. EN 1964-1
Material |
Diameter (mm) |
Capacity (L) |
Weight (kg) |
Working Pressure (bar) |
Wall thickness (mm) |
34CrMo4 |
204 |
40 |
48 |
200 |
4.6 |
34CrMo4 |
229 |
40 |
50 |
166.7 |
4.8 |
34CrMo4 |
229 |
50 |
58 |
166.7 |
4.8 |
34CrMo4 |
229 |
40 |
53 |
200 |
5.2 |
34CrMo4 |
229 |
45 |
57 |
200 |
5.2 |
34CrMo4 |
229 |
50 |
59 |
200 |
5.2 |
