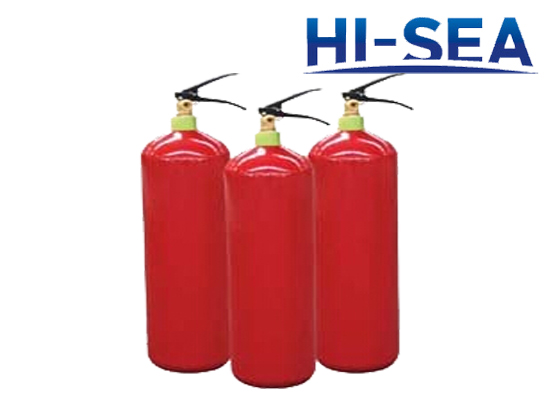

Portable CO2 Fire Extinguisher Cylinder

Portable CO2 Fire Extinguisher Cylinder

Portable CO2 Fire Extinguisher Cylinders are used to assemble CO2 Fire Extinguishers. The welding place could be intermediate welding, bottom welding, upper and bottom welding. Fire Extinguisher Cylinders have resistance to tearing and cracking. We have CE, EN3, EN1869, EN694, EN671 and AS/NZ approvals for our products. All of our products are manufactured and tested under the standard of ISO9001, CE, EN3, etc. We also could provide OEM service to meet customer’s special requirements. For example, we can print customer’s company name or logo on the cylinder neck.

Product Details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Material: Alloy-steel, Aluminum- Alloy

Temperature range: -30 centigrade degree to +60centigrade degree

Color: red/ blue/ or other customized color

Capacity: 2KG, 5KG

Main Parameter:

Material	Alloy-steel		Aluminum- Alloy
Capacity	2KG	5KG	2KG	5KG
Volume(L)	3	7.5	3.2	8
Out-diameter(mm)	90	110	130	130
Cylinder length(mm)	475	650	475	580
Full weight(kg)	6.6	15	6	14
Max working pressure	17.4bar	17.4bar	17.4bar	17.4bar
Test pressure	25bar	25bar	25bar	25bar
Quantity/ CTN(pcs)	1	1	1	1
Quantity/ 20ft(pcs)	2200	1100	2200	1100
Note: We Can Supply Various Fire Extinguisher Cylinder with Different Parameter As Requested
