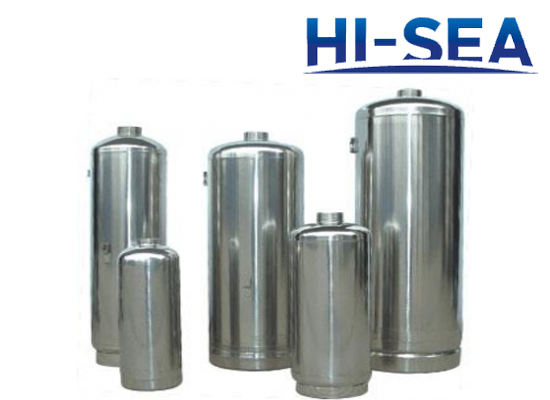

Stainless Steel ABC Fire Extinguisher Cylinder

Stainless Steel ABC Fire Extinguisher Cylinder

Cylinder is a pressure vessel used to store gases at above atmospheric pressure. Fire Extinguisher Cylinders have resistance to tearing and cracking. We have CE, EN3, EN1869, EN694, EN671 and AS/NZ approvals for our products. All of our products are manufactured and tested under the standard of ISO9001, CE, EN3, etc. We also could provide OEM service to meet customer’s special special requirements.

Product Details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Material: stainless steel

Temperature range: -30 centigrade degree to +60centigrade degree

Color: red/ blue/ or other customized color

Model number: 1-12KG

Main Parameter:

Capacity	1KG	2KG	3KG	4KG	6KG	9KG	12KG
Out-diameter(mm)	85	110	130	140	160	180	180
Volume(L)	1.29	2.4	3.9	5.4	7.8	10.5	13.38
Cylinder length(mm)	270	302	346	410	450	485	621
Cylinder weight(kg)	4.9	5.6	6.8	7.2	7.55	8.55	10.4
Max working pressure(bar)	14	14	14	14	14	14	14
Test pressure(bar)	27	27	27	27	27	27	27
Quantity/ CTN(pcs)	8	6	1	1	1	1	1
Quantity/ 20ft(pcs)	8000	4500	3200	2600	1800	1200	1000

Stainless Steel ABC Fire Extinguisher Cylinder

Stainless Steel ABC Fire Extinguisher Cylinder

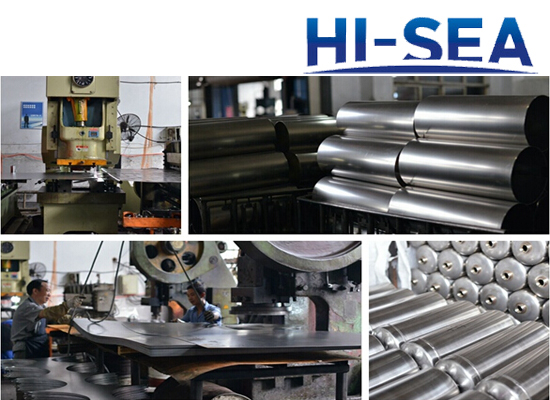

Production Process:
