Carbon Steel Torispherical Head

Carbon Steel Torispherical Head

Carbon Steel Torispherical Head:

Application: pressure vessels, storage tanks, boilers, pipes, heat exchangers, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, galvanizing, lining, etc.;

ASME stamp available;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, BS, JIS, GOST, etc.
Material	Carbon steel grade such as SA516 GR60/65/70, SA387 GR11 CL2, SA387 GR12, SA387 GR22 CL2, SA234 GR WPB/WPC, SA537 CL1/CL2, SA105, Q235, Q245R, Q345R, Q370R, 16MnDR, 15MnVR, 19Mn6, HI. HII, P235, PH235, P355, PH355, P235GH, P245GH, P265GH, P295GH, SB410, SB450, SPV355, SEV245, etc.;
Construction Type	Seamless or welded
Connection Type	Butt-welded or threaded
Edge Type	Bevel, plain or as required

Pictures:

Carbon Steel Torispherical Head

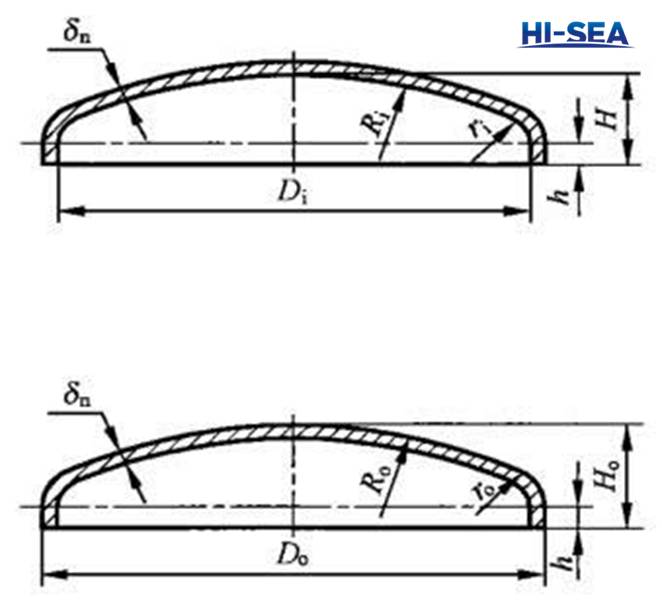

Carbon Steel Torispherical Head Drawing

Carbon Steel Torispherical Head

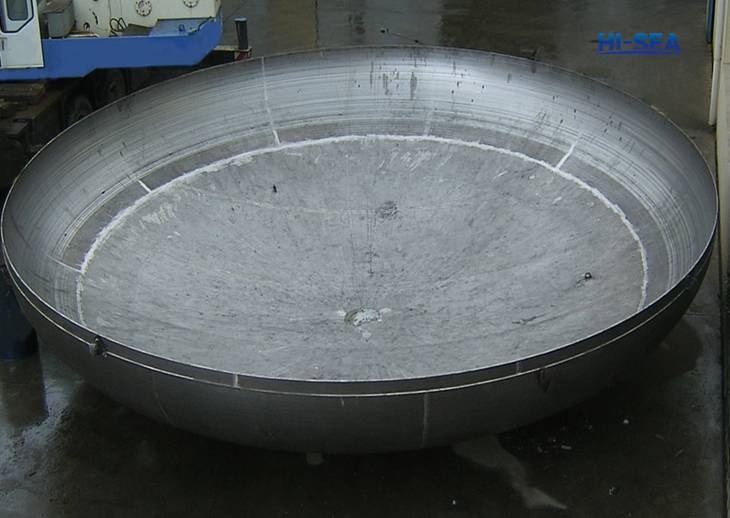

Carbon Steel Torispherical Head Finished

Carbon Steel Torispherical Head

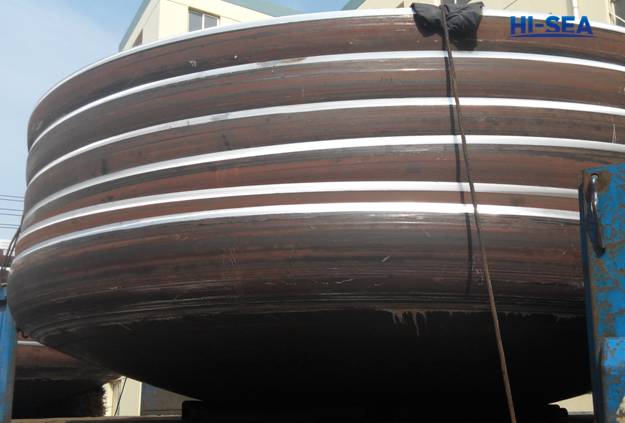

Carbon Steel Torispherical Head Delivered
