JB/T 4746-2002 Torispherical Head:

Manufactured as per Chinastandard JB/T 4746-2002 ('Formed Heads for Steel Pressure Vessels');

Applicable to vessels, boilers, reactors, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, lining, etc.;

Specifications:

Item	Descriptions
Model Code	DHA (r=0.15Di) / DHB (r=0.10Di)
Dia.	300mm-6000mm (customized size available)
Wall Thickness	2mm-100mm (customized thickness available)
Material	Carbon steel, stainless steel, alloy steel, nickel alloy, titanium alloy, copper alloy, aluminum alloy, etc.
Process Type	Cold pressing, hot pressing, cold spinning, segment, etc.
Construction Type	Seamless or welded
Connection Type	Butt-welding

Pictures:

JB/T 4746-2002 Torispherical Head

JB/T 4746-2002 Torispherical Head Drawing

JB/T 4746-2002 Torispherical Head

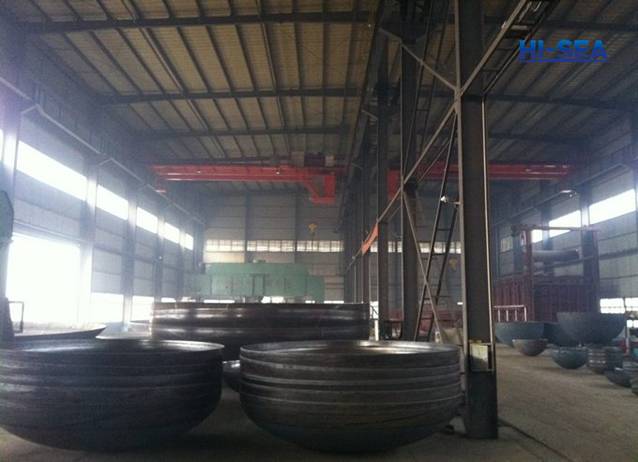

JB/T 4746-2002 Torispherical Head in Workshop

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
