DIN 28011 Torispherical Head:

Manufactured as per Deutsche Norm DIN 28011 (“Torispherical Dished End”);

Applicable to pipes, vessels, boilers, reactors, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, lining, etc.;

Specifications:

Item	Descriptions
Dia.	26.9mm-4000mm (customized size available)
Wall Thickness	3mm-50mm (customized thickness available)
Material	Carbon steel, stainless steel, alloy steel, nickel alloy, titanium alloy, copper alloy, aluminum alloy, etc.
Process Type	Cold pressing, hot pressing, cold spinning, segment, etc.
Construction Type	Seamless or welded
Connection Type	Butt-welding

Pictures:

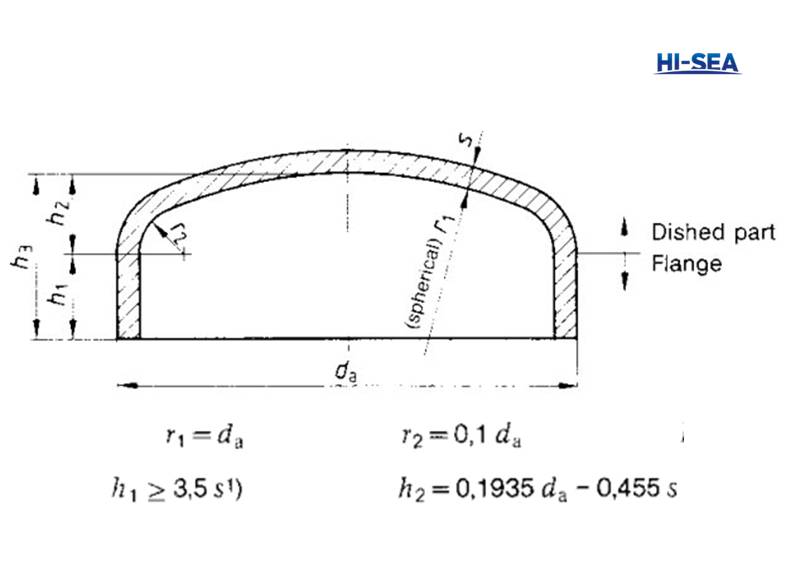

DIN 28011 Torispherical Head Drawing

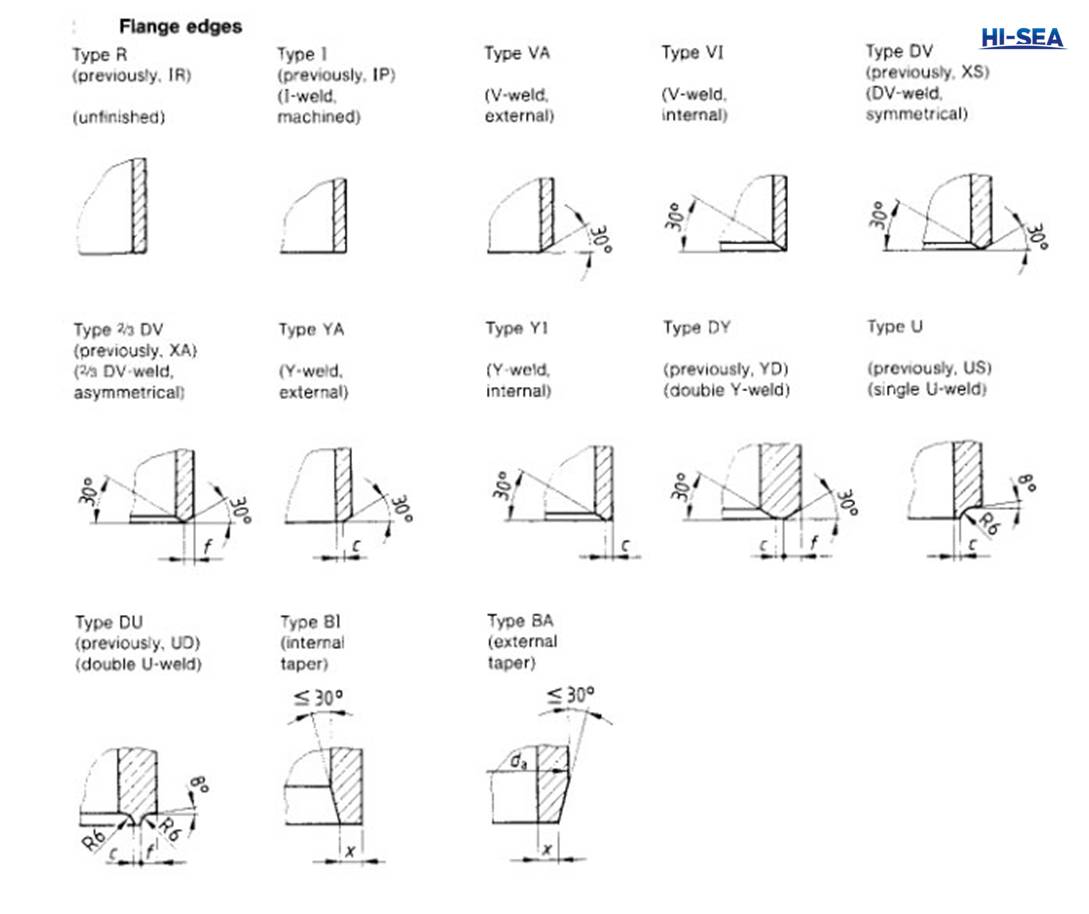

DIN 28011 Torispherical Head - Flange Edge Types

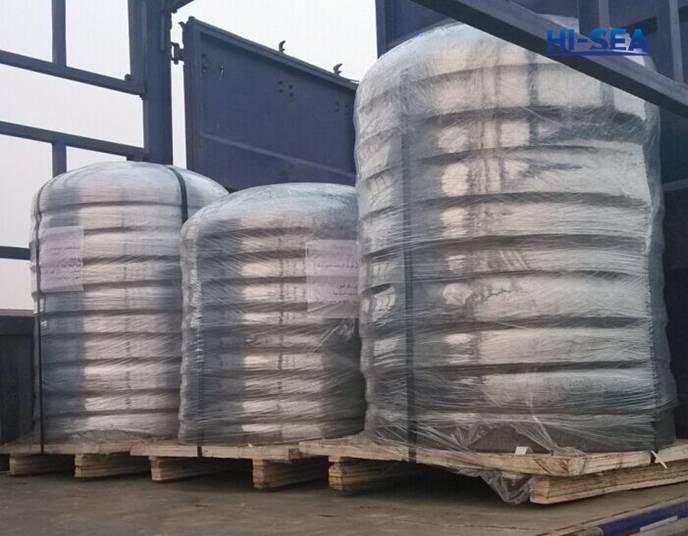

DIN 28011 Torispherical Head to Be Delivered

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
