GB/T 25198-2010 Torispherical Head

GB/T 25198-2010 Torispherical Head

GB/T 25198-2010 Torispherical Head:

Manufactured as per China standard GB/T 25198-2010 (“Heads for Pressure Vessels”);

Applicable to vessels, boilers, reactors, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, painting, lining, etc.;

Specifications:

Item	Descriptions
Model Code	THA /THB
Dia.	300mm-6000mm (customized size available)
Wall Thickness	2mm-100mm (customized thickness available)
Material	Carbon steel, stainless steel, alloy steel, nickel alloy, titanium alloy, copper alloy, aluminum alloy, etc.
Process Type	Cold pressing, hot pressing, cold spinning, segment, etc.
Construction Type	Seamless or welded
Connection Type	Butt-welding

Pictures:

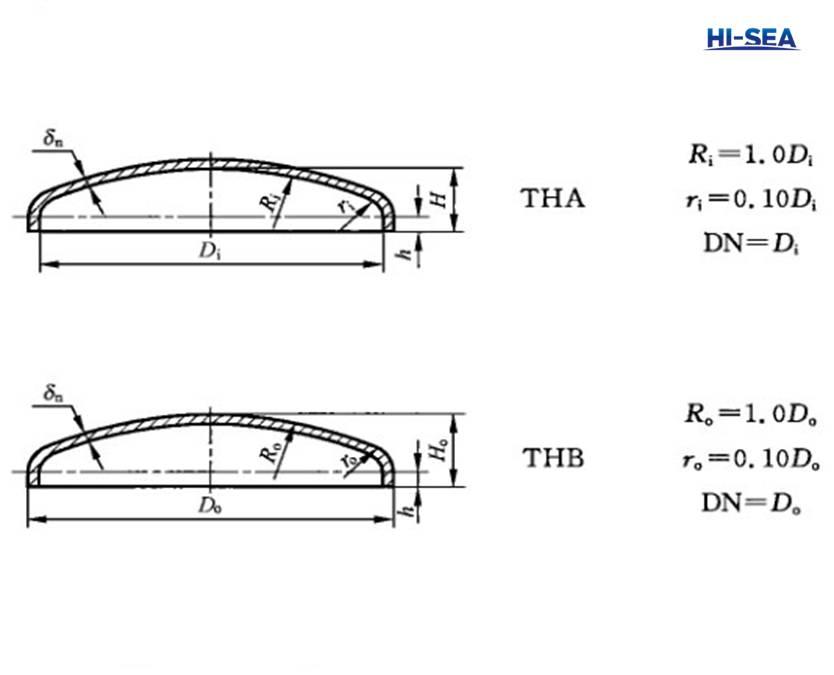

GB/T 25198-2010 Torispherical Head Drawing

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
