CBM1114-82 International Shore Connection

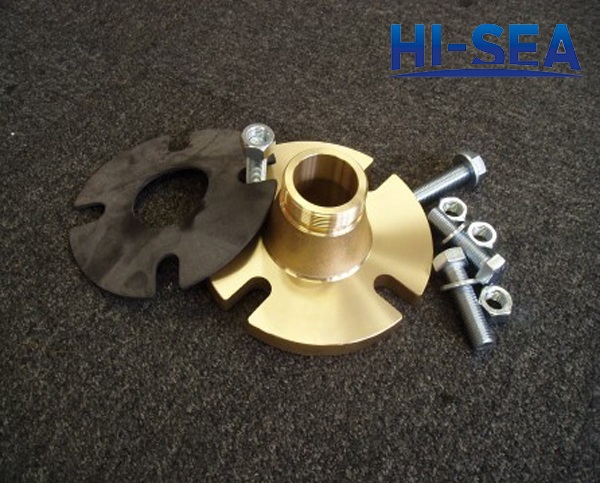

Marine international shore connection
This type of oil sewage international shore connection and domestic sewage international shore connection are mainly suitable for the use of ship oil sewage and domestic sewage pipelines. One end is a plane flange, and the other end is an attached interface matched with the fire hydrant and fire hose on board; The international shore connection interface is consistent with the fire hydrant and hose interface of the ship.
Outer diameter: 215mm;
Inner diameter: according to the outer diameter of the pipe;
Bolt pitch diameter: 183mm;
Flange notch: six holes with a diameter of 22mm are equally distributed on the diameter of the above bolt ring, and the notch is 22mm wide from the notch to the outer edge of the flange;
Flange thickness: 20mm;
Bolts and nuts: M20 * 6, with appropriate length. sh-jcfm

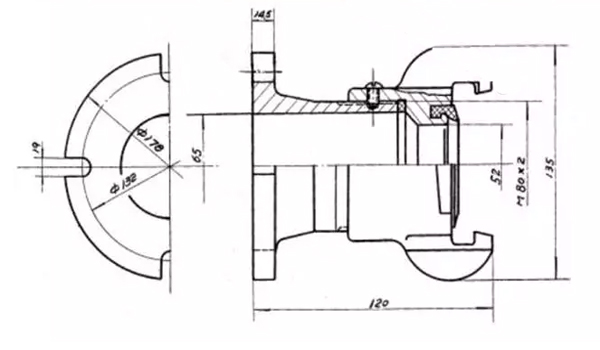

Drawing:
