Stainless Steel Drive Control Head

Details:

Model: CB / T3791-1999 small shaft transmission device element
Executive standard: special standard of National Technical Committee for ship standardization
Product model on this page: A2 type handwheel drive control head with travel indicator
This standard product is applicable to the small shaft transmission device with the side length of the square head of the operating spindle of 9 ~ 36mm.
Diameter of small shaft round head: 12.0 ~ 42.0mm
Weight: 2.2 ~ 31.0kg
Number of studs: 4 / 6 / 8

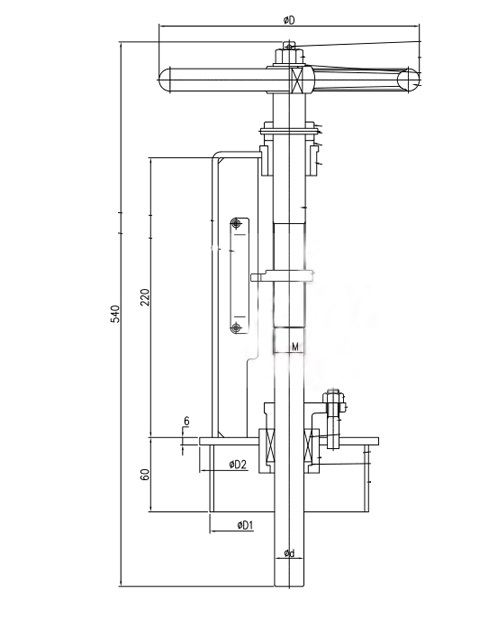

Drawing:
