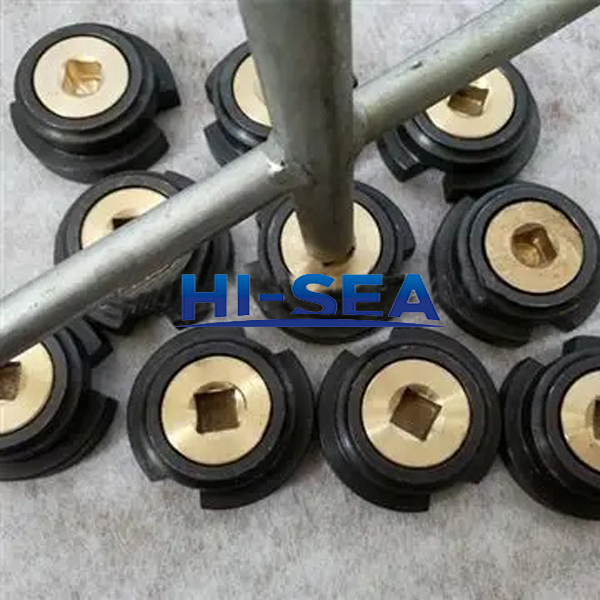

CBT254-1977 Ship Bottom Plug

Supply bottom drain plug CBT254BW CBT25b4W bottom drain plug, which is mainly composed of three parts: cock, base and padding. It is mainly used for water tank and oil tank. There are two types: type A (without shoulder) and type B (with shoulder). According to the groove at the tail of the cock, it is divided into two types: O-type (hexagonal hole) and W-type (square hole). According to the material of the cock, it is divided into two materials: stainless acid resistant steel and brass.

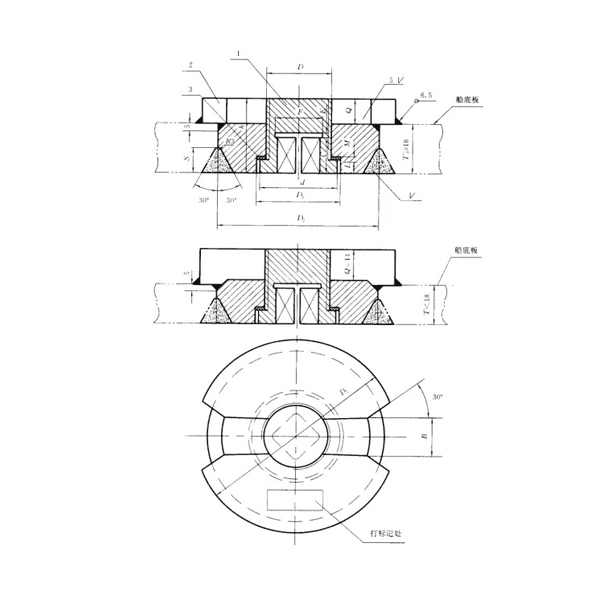

Drawing:
