JIS F7234 Marine Sight Glass

Details:

The fluid watching machine J type it ca be used in sea water, fresh water, oil (not includingheavy oil).

Materials:

• Body: Cast Iron;
• Transparent board: Ordinary glass;
• Transparent Pipe: Plexiglass;
• Cover: Cast tin bronze;
• Cover Board: Carbon steel.

Elementary Dimensions:

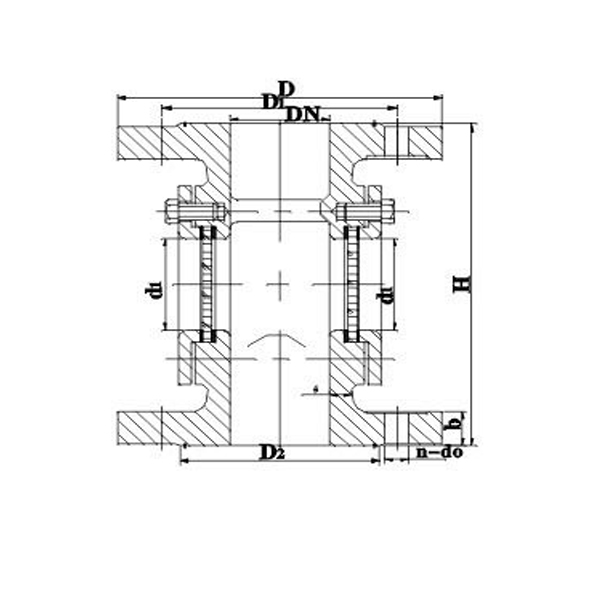

Drawing:
