Container Corner Fitting

[Search Related Products]

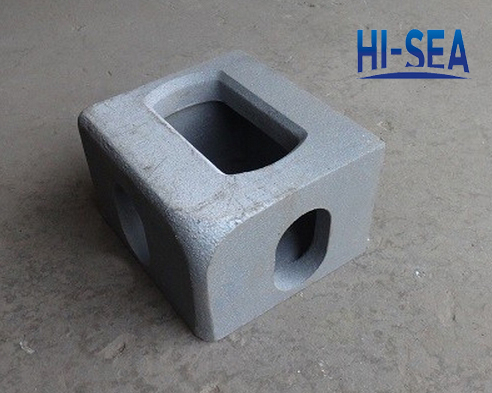

Container Corner Fitting

Container Corner Fitting

All the angle of container are equiped with container corner fittings. It is the important component to connect the main bearing rod to support, stack and lift container. The structure size and position of it are ruled strictly, which providing the necessery condition for container automatic assignment.

Product Details:

1. Part type: TL, TR, BL, BR

2. Standard: ISO, 8pcs in one set, including 2TL, 2TR, 2BL, 2BR

3. Material:Casting steel, SCW490

4. Surface treatment: Hot dip galvanized

5. Finish: Shop primer

6. Application: Container, shipping

7. Weight: 10.5KG

8. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

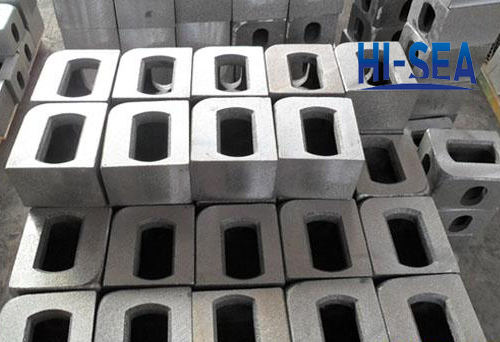

Container Corner Fitting

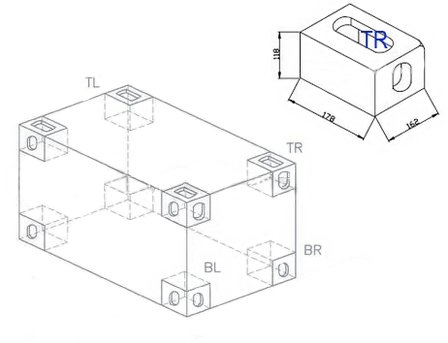

Sketch of container corner fitting

Container Corner Fitting

Container Corner Fitting-A HSFA8

Container Corner Fitting

Container Corner Fitting-B HSFB9
