Container Double Dovetail Foundation

Container Double Dovetail Foundation

Container double dovetail foundation is used to fix the container on shipping deck through connecting dovetail twistlock. It should be clean before use. And keep wellgreased and examed regularly for damage and wear.

Product Details:

1. Material:High quality casting steel

2. Type: Double type

3. Weight:6.9KG

4. Finish: Shop primer

5. Application: Container, shipping

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. Customized design is available

10. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Specification:

Type	Lc	Weight
HS-A2/203	203	6.7KG
HS-A2/216	216	7.5KG
HS-A2/258	258	8.1Kg

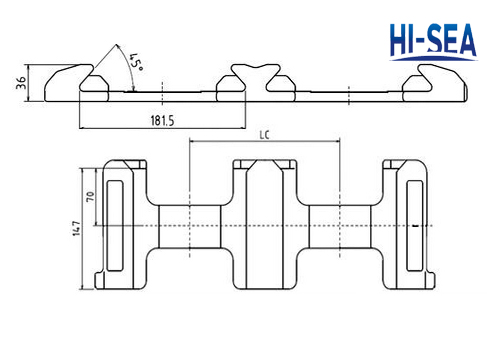

Sketch of the container double dovetail foundation
