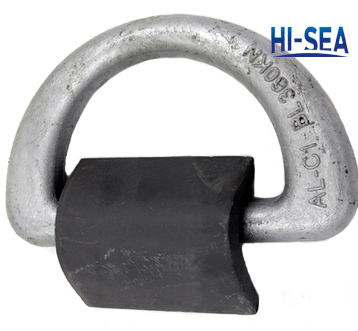

Container D-ring

Container D-ring

Container D-ring is used as lashing points on RoRo vessels or as an alternative fixing point for lashes or turnbuckles on container ships. It is metallic parts welded upon decks to stow cargo. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Material: Forged steel

2. Surface treatment: Hot dip galvanized

3. Finish: Shop primer

4. Application: Container, shipping

5. Weight: 4.6kg

6. M.B.L tension: 500KN

7. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twist locks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Specification:

Weight	M.B.L	Dimension
KG	KN	MM
1.2	200	76*100*63
2.6	360	202*100*78
4.6	500	220*200*93
6.4	360	202*200*78
7.2	360	202*173*100

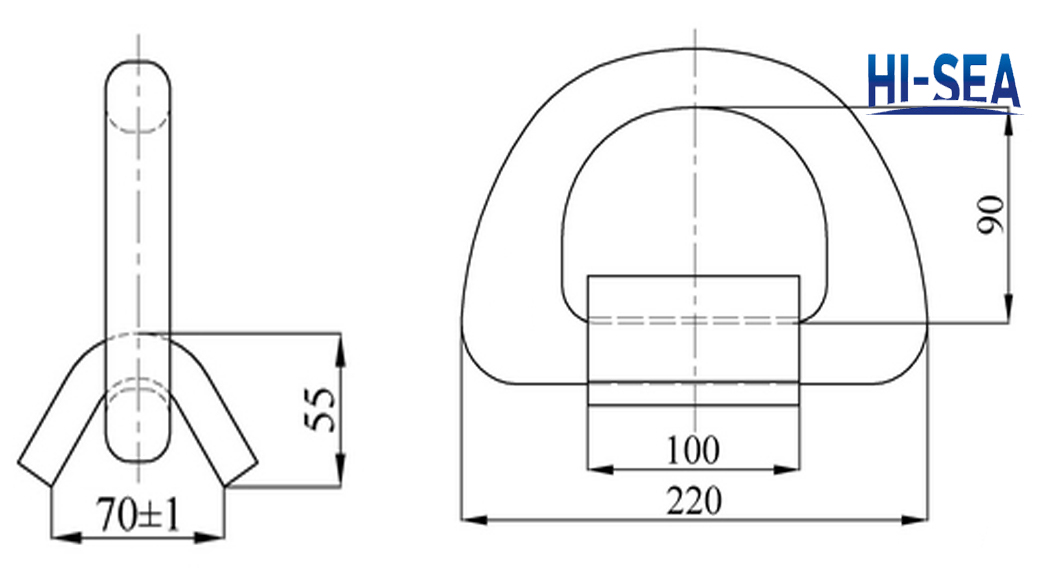

Sketch of the container D-ring

Container D-ring
