Dredge Bow Coupling
[Search Related Products]
Description of Dredge Bow Coupling
Hi-sea Dredge Bow Coupling is for TSHD.The bow coupling can be used to attach a floating pipeline to the vessel without the need for an additional vessel. The bow coupling installation mainly consists of a welded steel frame, which is mounted on the fore trestle of the ship and a hydraulic hoisting winch. The steel frame contains a hydraulically operated click-in ball joint, dredge line bend, upper roll for the hoisting wire and optionally a rainbow nozzle. The unit is equipped with an operating panel and a hydraulic control block.
The coupling procedure is easy: connect the floating pipe line to the hoisting wire, hoist into the click-in ball joint and close the click-in. The hydraulic control block will adapt automatically to the increasing hoisting load and will prevent the male part from being pulled into the click-in ball joint too fast.
The bow coupling system is fitted with a unique coupling mechanism to the floating dredge pipeline. The coupling mechanism comprises of a click-in ball joint mechanism (male-part) which is locked and released by a single hydraulic cylinder mechanism. This mechanism is designed to perform in rugged operating conditions; any sand or dirt accumulation will not interfere with the locking and releasing mechanism of the male part.
For more information,please feel free to contact us directly.
Features:
High quality
Easy to operate
Maintenance friendly
Highest degree of flexibility
Technical Specifications:
Diameter[mm] |
Hydraulic winch pressure[KN] |
500 |
250 |
550 |
250 |
600 |
250 |
650 |
300 |
700 |
300 |
800 |
350 |
850 |
350 |
900 |
450 |
1000 |
450 |
1100 |
500 |
1200 |
500 |
Note:Dredge Bow Coupling can be customized according to clientsĄŻ special requirements.

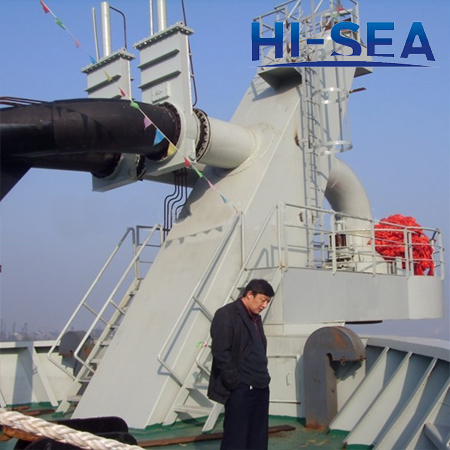

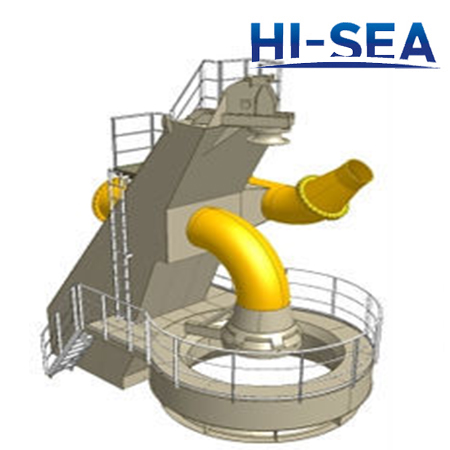

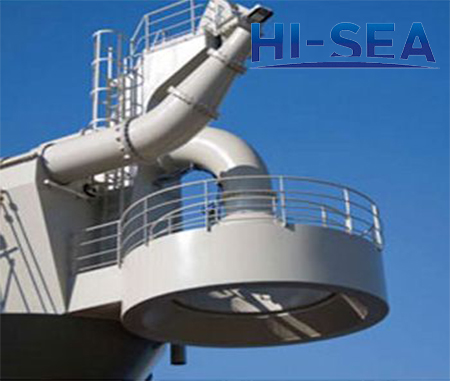

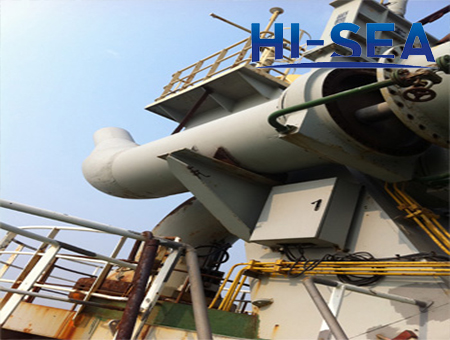

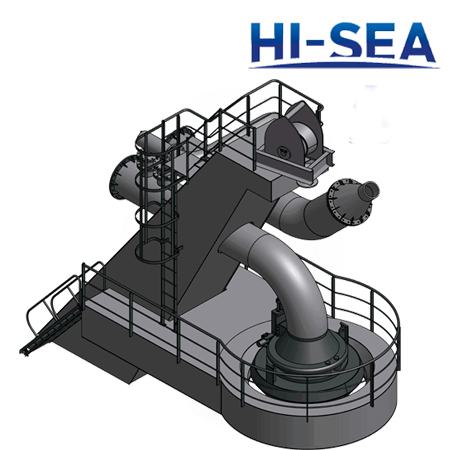

Pictures of Dredge Bow Coupling are as follows:
