Dredge Turning Gland

Description of Turning Gland

Hi-sea Turning Gland is for side suction pipe system of the trailing suction hopper dredger.Turning gland is bolted between the lower suction pipe and the cardan hinge in a trailing pipe of a Trailing Suction Hopper Dredger.It is designed by modular principle for heavy duty operation in any type of soil anywhere in the world. The turning gland enables the drag head to better follow the sea bottom or ocean floor. The turning gland allows a radial rotation in both directions of 15กใ. The turning gland consists of an inner and an outer pipe and has mechanical stops to limit rotation. Two bearings and a sealing make for a trouble-free use.

The standard range of the turning gland is DN 600 up to DN 1000. Any suction diameter can be designed.If you want to get more information about product price,type,function and so on, Please feel free to contact us directly.

Parameters:

Pipe Inside

Diameter

Outside

Diameter

Pitch Circle

Diameter

Diameter

of

Bolt Hole

Bolt

Quantity

Bolt Size

Flange

Thickness

Over all

Length

Total Weight

[mm]

[mm]

[mm]

[mm]

[mm]

[mm]

[mm]

[kg]

500

670

620

26

20

M24

38

1,500

1,320

600

780

725

30

20

M27

42

1,650

1,770

700

895

840

30

24

M27

50

1,800

2,382

800

1,015

950

33

24

M30

56

1,850

3,059

900

1,115

1,050

33

28

M30

62

1,900

3,652

1,000

1,230

1,160

36

28

M33

70

1,950

4,393

1,100

1,275

1,220

36

28

M33

76

2,000

5,047

1,200

1,455

1,380

39

32

M36

83

2,050

5,610

1,300

1,560

1,480

39

32

M36

83

2,100

6,753

1,400

1,675

1,590

42

36

M39

83

2,150

7,471

Note:Dredge turning gland can be customized according to your special requirements.

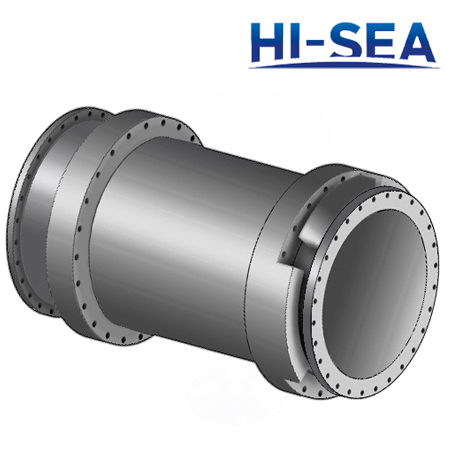

Pictures of Turning Gland are as follows:

Dredge Turning Gland

Dredge Turning Gland
