Dredge Heavy Duty Active Drag Head for TSHD Dredger

Production of Dredge Heavy Duty Active Drag Head for TSHD Dredger

Hi-sea Dredge Heavy Duty Active Drag Head is to excavate the soil and transform it and the seawater into a mixture. The higher the density of the mixture the drag head can create, the better it is performing. Furthermore, the drag head represents the first mechanical contact with the soil, so its design, quality and sturdiness are critical in dredging tasks. Ongoing development has resulted in active soil excavation by the drag head, either with water or teeth.Hi-sea has invested many years of practical experience and testing to create optimal drag head solutions for extracting the maximum of bottom soil at minimum time and cost, and continues to do so.

The dredge heavy duty drag heads offer a combination of high excavation capabilities for loosening the soil and optimized hydraulic properties for mixture transportation. High mixture concentrations are possible in many kinds of soil. The dredge drag heads are welded constructions made of structural steel. Cutting teeth of abrasion resistant cast steel and jet water nozzles are arranged over the whole width of the visor.

Note:Hi-sea dredge drag head can be customized according to clientsĄŻ special requirements.For any more information,please feel free to contact us directly.

Features:

Adjustable visor

Easy maintenance

Minimal resistance to flow

Efficient hydraulic design

Replaceable wear blocks and side skirts

Replaceable teeth system

Various suction pipe diameters

Parameters:

Diameter

Length Overall

Length of Visor

Width overall

Width of Visor

[mm]

[mm]

[mm]

[mm]

[mm]

420

1300

1000

1600

1340

550

1525

1100

1800

1560

600

1560

1190

1850

1560

650

1900

1240

2650

2550

700

1935

1255

2700

2600

750

1950

1300

2810

2700

800

2000

1550

2940

2750

900

2350

1650

3200

2850

1000

2850

1760

3700

3250

1200

3300

1850

4240

3700

Dredge Heavy Duty Active Drag Head for TSHD Dredger

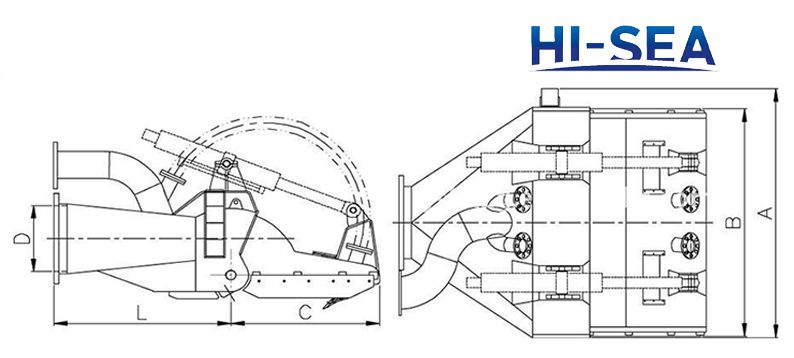

Drawing of Dredge Heavy Duty Active Drag Head for TSHD Dredger

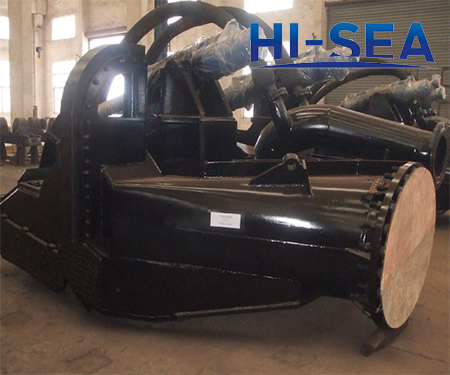

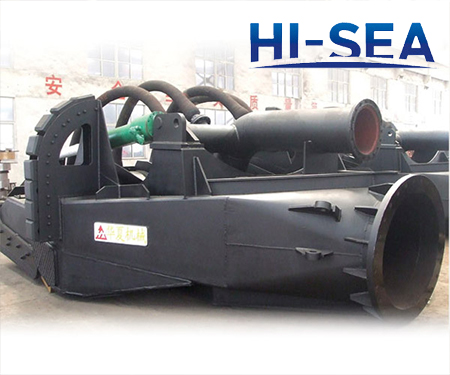

Pictures of Dredge Drag Head are as follows:

Dredge Heavy Duty Active Drag Head for TSHD Dredger

Dredge Heavy Duty Active Drag Head for TSHD Dredger

Dredge Heavy Duty Active Drag Head for TSHD Dredger

Dredge Heavy Duty Active Drag Head for TSHD Dredger

Dredge Heavy Duty Active Drag Head for TSHD Dredger

Dredge Heavy Duty Active Drag Head for TSHD Dredger
