Dredge Cardanic Joint
[Search Related Products]
Description of Dredge Cardanic Joint
Hi-sea Dredge Cardanic Joint is available in a wide range of diameters.It is made of a strong steel construction,which can be easily integrated into the side suction pipe of all hopper dredgers.The single joint enable the cardanic joint to pivot in both the horizontal and the vertical plane. The maximum deflexion angle of the cardanic joint is 30¡ă.
The pivots are executed as steel shafts with bushes and have sufficient strength to bear the full load of the side suction pipe. A rubber fender is mounted on the cardanic ring to prevent damage to the ship' s hull.
To facilitate the pivoting movement of the joints, a rubber hose with wear lining is fitted between the connecting pipe pieces. The hose is fitted with steel rings to provide strength against the vacuum of the dredge pump.
Note:Hi-sea dredge cardanic joint can be customized according to customers¡¯ special requirements.For more information,please feel free to contact us directly.

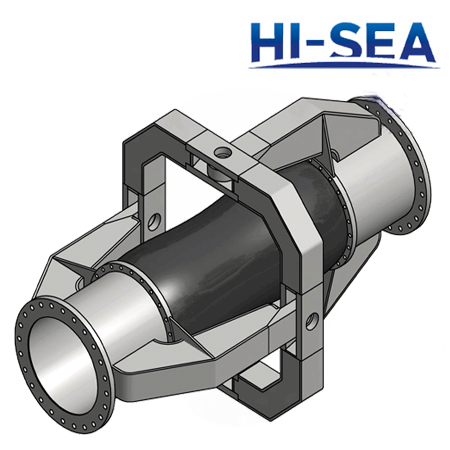

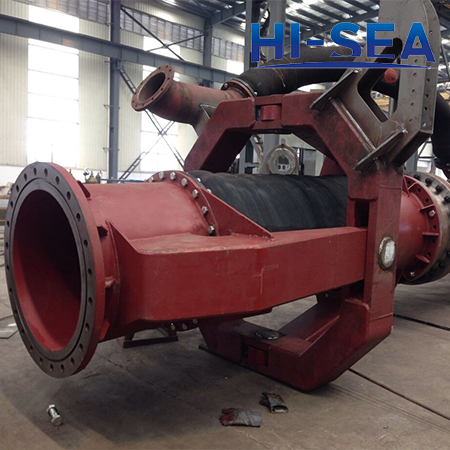

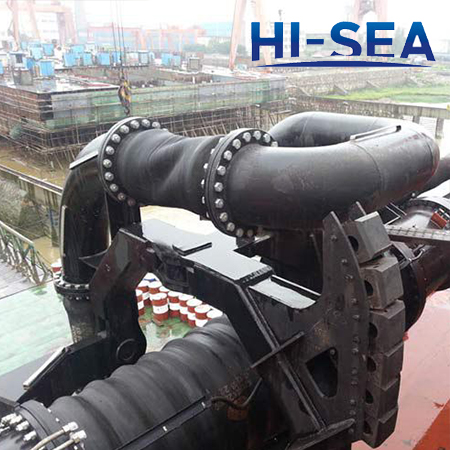

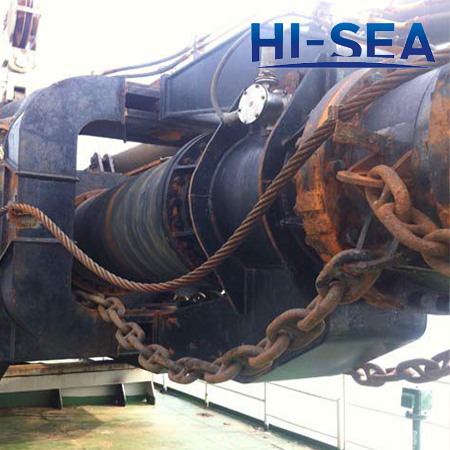

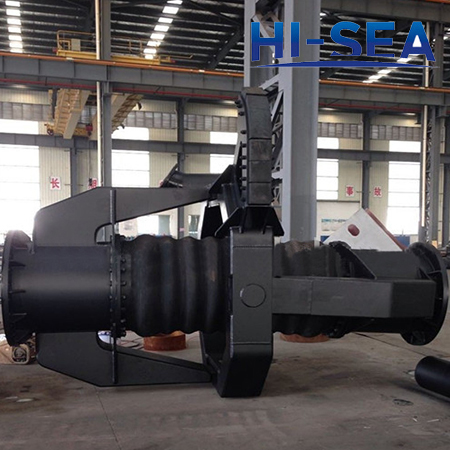

Pictures of Dredge Cardanic Joint are as follows:
