Dredge Cutter Head

Description of Dredge Cutter Head

Dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework.Dredger is a very common device in the clearing operations.Dredgers are in charge of dredging work and so on.The work efficiency is very high.However,the dredge cutter head is an important part of cutter suction dredger.It is available for cutting and stirring sediment.And it largely determines the production quantity and the dredging efficiency.

The basic cutter head skeleton includes a hub, a ring and several curved arms that link the hub and ring together. The adapters with teeth or replaceable cutting edges are fitted on the front side of the cutter arm.

Hi-sea dredge cutter head has professional design and high quality.The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.Therefore,we provide a wide range of cutter heads to the clients. Dredge cutter heads can be customized according to clientsĄŻ special requests.

Features:

Low cost

Low spill

Various cutter heads

Refined tooth and cutting edge design

Easy to repair

Replaceable dredge cutter teeth

Cutter shaft, cutter bearing,blade and others can be optional

Parameters:

Dia of suction pipe

Inner dia(mm)

Rotated speed(rpm)

Blade No.

250-300

830

0-34

5

350-400

955

0-35

5

350-400

955

0-30

5

400-450

1330

0-30

5

500-550

1550

0-30

5-6

600-650

1750

0-32

5-6

600-650

1750

0-30

5-6

600-650

1750

0-24

5-6

600-650

1830

0-30

5-6

650-700

2000

0-30

5-6

700-750

2150

0-30

6

800-850

2260

0-30

6

850-900

2330

0-30

6

900-950

2400

0-30

6

Note:The designs of dredge cutter head can be customized according to your special requirements.For more information,please contact us directly.

Dredge Cutter Head

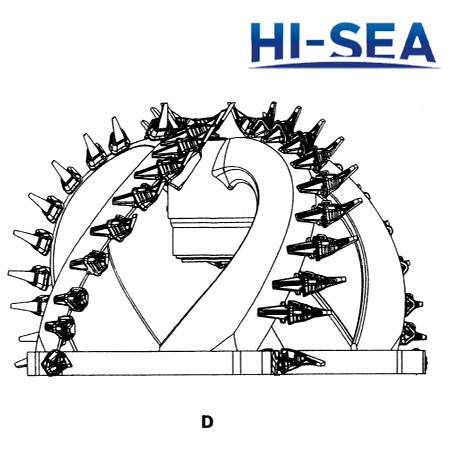

Drawing of Dredge Cutter Head

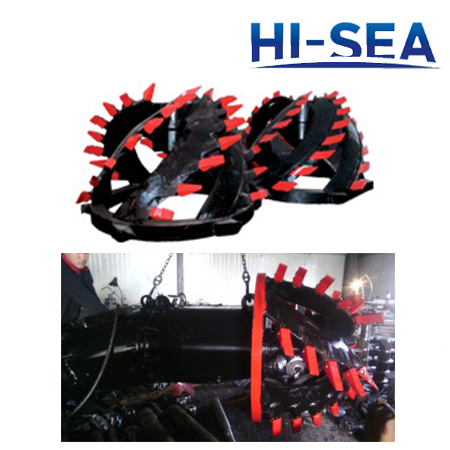

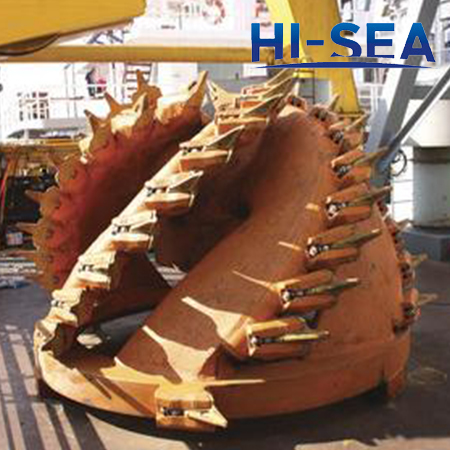

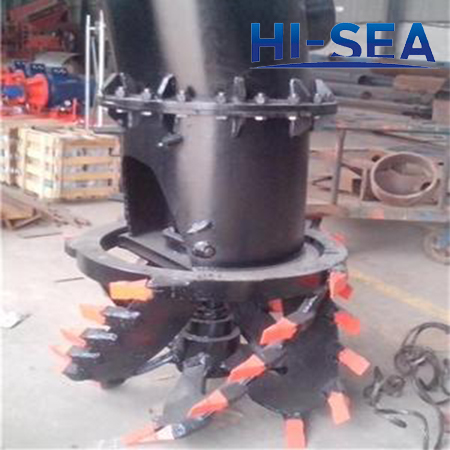

Pictures are as follows:

Dredge Cutter Head

Dredge Cutter Head

Dredge Cutter Head
