Traditional Type Dredge Cutter Head

[Search Related Products]

Traditional Type Dredge Cutter Head

Description of Traditioal Type Dredge Cutter Head

Traditional type dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework.The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals. .The traditional type dredge cutter head is an important part of cutter suction dredger.It is available for cutting and stirring sediment.And it largely determines the production quantity and the dredging efficiency.

The basic cutter head skeleton includes a hub, a ring and several curved arms that link the hub and ring together. The adapters with teeth or replaceable cutting edges are fitted on the front side of the cutter arm.

Hi-sea new type dredge cutter head has professional design and high quality.We provide varieties of cutter heads to the clients. Customization is available according to clients¡¯ special requests.

Features:

Materials is 30Mn-Mn13

Low cost

Low spill

Replaceable dredge cutter teeth

Various cutter heads

Easy to repair

Refined tooth and cutting edge design

Cutter shaft, cutter bearing,blade and others can be optional

Parameters:

Inner ring Dia.£¨mm£©

No.of blade

Output torque (KN*M)

Speed(rpm)

Max shaft power (KW)

Suction Dia. (mm)

Capacity (m3/h)

830

5

9.7

0-34

35

250-300

200

955

5

17

0-35

62

350-400

350

955

5

21

0-30

66

350-400

350

1330

5

32

0-30

101

400-450

650

1550

5

56

0-30

176

500-550

900

1750

5

75

0-32

251

600-650

1200

1750

5

84

0-30

264

600-650

1200

1750

5

90

0-24

226

600-650

1200

1830

5

119

0-30

375

600-650

1600

2000

5

175

0-30

550

650-700

1800

2150

6

180

0-30

750

700-750

2000

2260

6

286

0-30

900

800-850

3000

2330

6

350

0-30

1100

850-900

4000

2400

6

446

0-30

1400

900-950

4500

Note:All can be customized according to clients' requirements.

Traditional Type Dredge Cutter Head

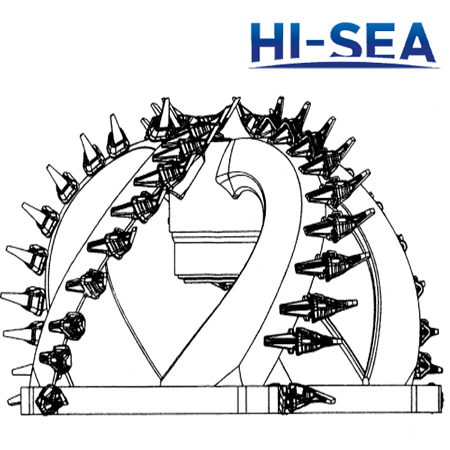

Drawing of Traditional Type Dredge Cutter Head

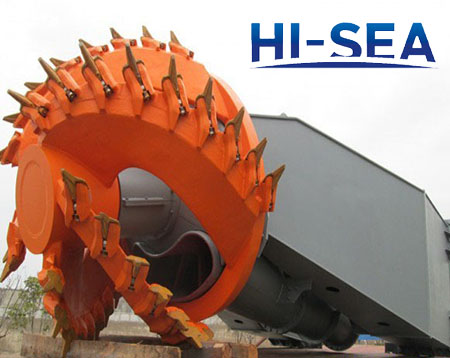

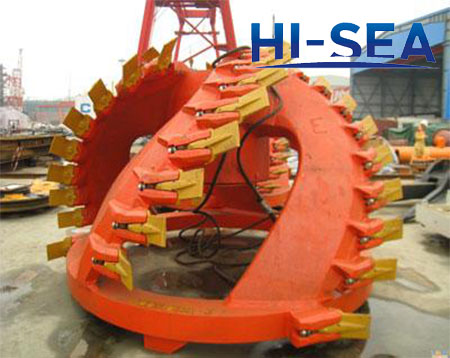

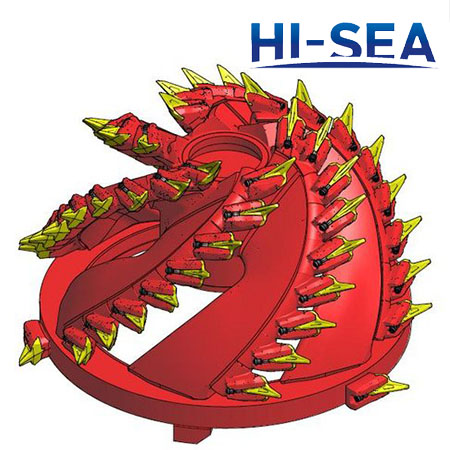

Pictures are as follows:

Traditional Type Dredge Cutter Head

Traditional Type Dredge Cutter Head

Traditional Type Dredge Cutter Head
