Description of New Type Dredge Cutter Head
New type dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework.Dredger is a very common device in the clearing operations.Dredgers are in charge of dredging work and so on.The work efficiency is very high.However,the new type dredge cutter head is an important part of cutter suction dredger.It is available for cutting and stirring sediment.And it largely determines the production quantity and the dredging efficiency.The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.
The basic cutter head skeleton includes a hub, a ring and several curved arms that link the hub and ring together. The adapters with teeth or replaceable cutting edges are fitted on the front side of the cutter arm.
Hi-sea new type dredge cutter head has professional design and high quality.We provide a wide range of cutter heads to the clients. New type dredge cutter heads can be customized according to clients¡¯ special requests.
Features:
Low cost
Low spill
Various cutter heads
Easy to repair
Refined tooth and cutting edge design
Replaceable dredge cutter teeth
Cutter shaft, cutter bearing,blade and others can be optional
Parameters:
Inner ring Dia.£¨mm£© |
No.of blade |
Output torque (KN*M) |
Speed(rpm) |
Max shaft power (KW) |
Suction Dia. (mm) |
Capacity (m3/h) |
830 |
7-8 |
9.7 |
0-34 |
35 |
250-300 |
200 |
955 |
7-8 |
17 |
0-35 |
62 |
350-400 |
350 |
955 |
7-8 |
21 |
0-30 |
66 |
350-400 |
350 |
1330 |
7-8 |
32 |
0-30 |
101 |
400-450 |
650 |
1550 |
7-8 |
56 |
0-30 |
176 |
500-550 |
900 |
1750 |
8-9 |
75 |
0-32 |
251 |
600-650 |
1200 |
1750 |
8-9 |
84 |
0-30 |
264 |
600-650 |
1200 |
1750 |
7-8 |
90 |
0-24 |
226 |
600-650 |
1200 |
1830 |
8-9 |
119 |
0-30 |
375 |
600-650 |
1600 |
2000 |
8-9 |
175 |
0-30 |
550 |
650-700 |
1800 |
2150 |
8-9 |
180 |
0-30 |
750 |
700-750 |
2000 |
2260 |
8-9 |
286 |
0-30 |
900 |
800-850 |
3000 |
2330 |
9-10 |
350 |
0-30 |
1100 |
850-900 |
4000 |
2400 |
9-10 |
446 |
0-30 |
1400 |
900-950 |
4500 |
Note:Customization is available according to clients' requirements.

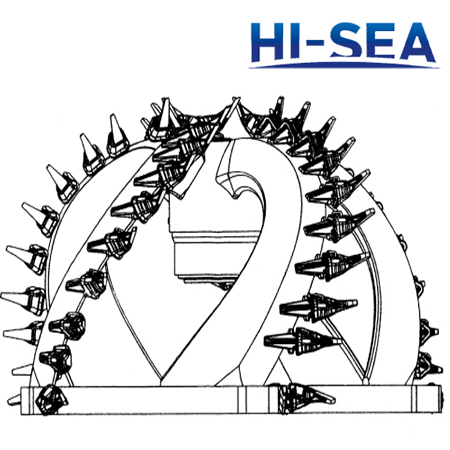

Drawing of New Type Dredge Cutter Head
Picture is as follows:
