Description of Hydraulic Dredge Cutter Head
Hydraulic dredge cutter head has strong digging force.The hydraulic dredge cutter head is one of key structure of cutter suction dredger.It can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.It is driven by hydraulic motor.Therefore,it has high work efficiency and low spill.The maintenance costs are lower.
Hi-sea hydraulic dredge cutter head has high quality and excellent design.customization as available according to your special requirements.For more information,please feel free to contact us.
Features:
High efficiency
Hydraulic motor
Strong dredging force
Low maintenance costs
Easy to repair
Parameters:
Inner dia.(mm) |
Blade |
Speed(r/min) |
Max. shaft power(KW) |
Suction pipe dia.(mm) |
Working capacity(m3/h) |
Matched pump water flow(m3/h) |
650 |
5 |
0-34 |
15 |
150 |
80 |
360-450 |
830 |
5 |
0-34 |
35 |
250-300 |
150 |
750-800 |
955 |
5 |
0-35 |
62 |
350-400 |
350 |
1200-1400 |
1100 |
5 |
0-30 |
80 |
400 |
400 |
1500-2000 |
1330 |
5 |
0-30 |
101 |
400-450 |
650 |
2000-2500 |
1550 |
5 |
0-30 |
130 |
500-550 |
900 |
3000-3500 |
1750 |
5 |
0-32 |
251 |
600-650 |
1200 |
4000-4500 |
1830 |
5 |
0-30 |
375 |
600-650 |
1600 |
5000-6000 |
Note:Customization is available according to your special requirements.

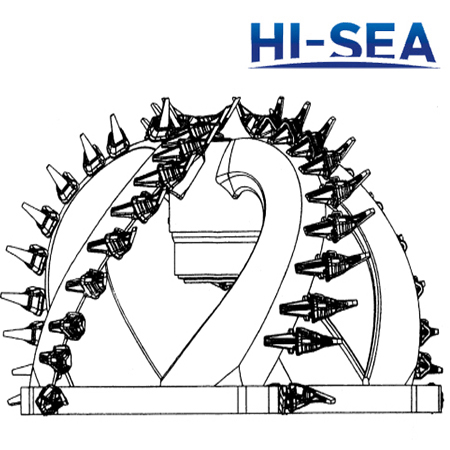

Drawing of Hydraulic Dredge Cutter Head

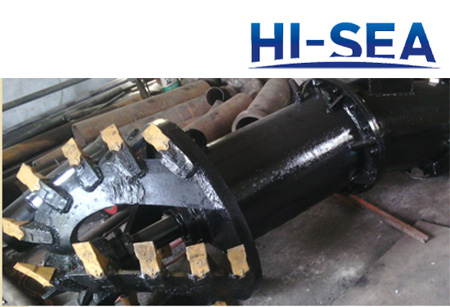

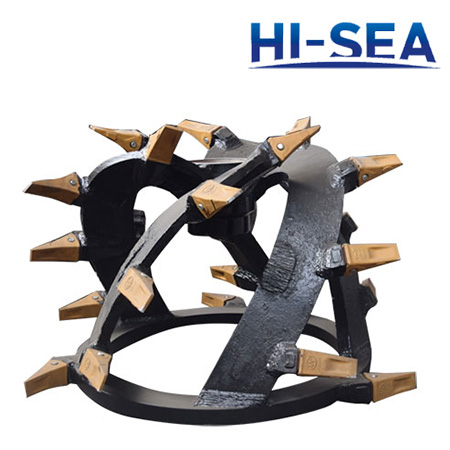

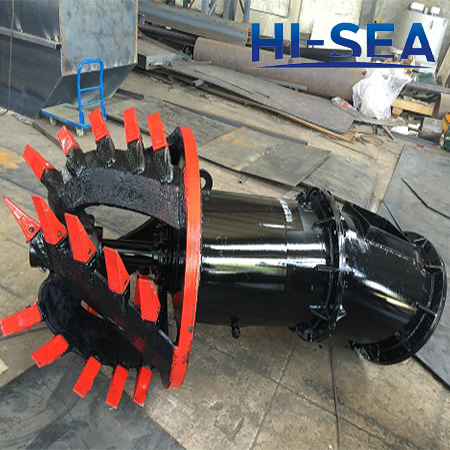

Pictures are as follows:
