Duplex Switch Filter

With two tees Ball Valve is used for double-cylinder block out filters.Two single-cylinder filter are assembled on the same seat to block out each other.when the filter is washed,it’s not necessary to shut down to ensure contionous operation.

Materials of construction：

Component

Body

Screen Mesh

Drainage nozzle

Gasket

Bolt/Nut

Material

H62

CS衬PTFE

304

316L

PTFE

304

316L

PTFE

304

316L

Standard Connection：HG、GB、ANSI、JIS、DIN、ect.

Operating Pressure：0.6MPa——5.0MPa （150Lb——600Lb）

Dimension table：

DN	D	L	L1	H₁	H₂	H₃
50	273	1250	380	1200	460	550
65	325	1280	400	1200	475	550
80	377	1400	420	1440	515	660
100	425	1570	480	1480	540	690
150	520	1880	580	1780	610	900
200	566	2100	650	1880	680	900

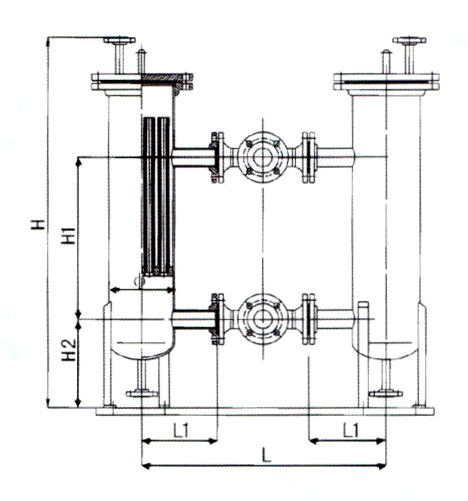

Drawing of Duplex Switch Filter:

Duplex Switch Filter

Order Construction：

1.Please give indication of dimension，operating pressure。Filter element type，filter medium and pore size.

2.Please give clear indication of flange，material and operating if you need other standard.
