7.Dimension table£º
|
DN |
D1 |
L |
H |
H1 |
H2 |
|
|
25 |
1 |
76 |
180 |
260 |
410 |
160 |
|
40 |
11/2 |
108 |
260 |
300 |
560 |
170 |
|
50 |
2 |
108 |
260 |
300 |
560 |
170 |
|
65 |
21/2 |
133 |
373 |
364 |
637 |
174 |
|
80 |
3 |
159 |
399 |
417 |
719 |
214 |
|
100 |
4 |
219 |
459 |
508 |
881 |
272 |
|
125 |
5 |
273 |
513 |
617 |
1079 |
345 |
|
150 |
6 |
325 |
565 |
724 |
1276 |
404 |
|
200 |
8 |
377 |
617 |
793 |
1397 |
446 |
|
250 |
10 |
426 |
666 |
893 |
1544 |
495 |
|
300 |
12 |
478 |
718 |
997 |
1739 |
563 |

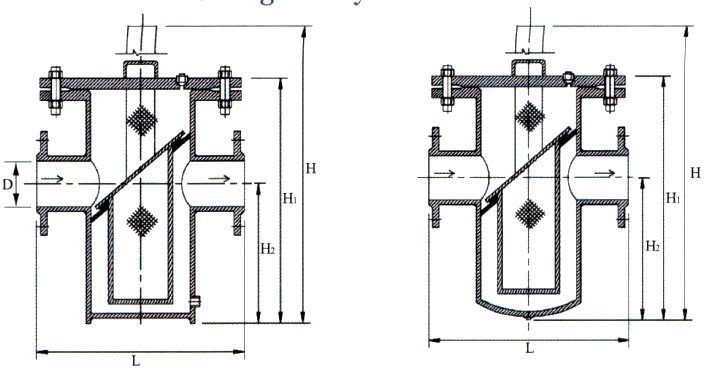

8.Drawing of Straightway Basket Filter:
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium and pore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
