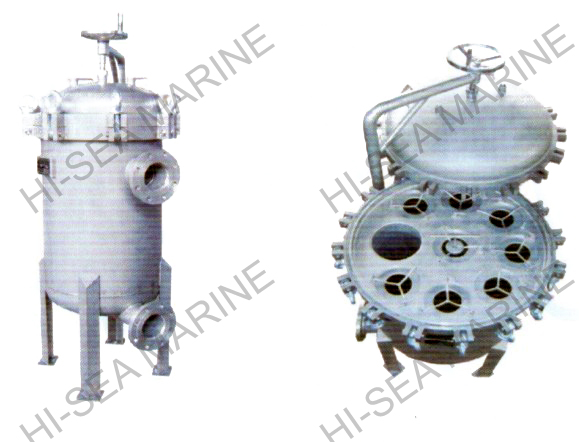

Micropore Precision Filter:
1.Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
2.Operating Pressure£º0.6Mpa¡ª¡ª2.5Mpa £¨150Lb¡ª¡ª300Lb£©.
3.Materials of construction£º
|
NO |
1 |
2 |
3 |
4 |
5 |
6 |
|
Component |
Body |
Filter Element |
Filter Net |
Filter Casing |
Gasket |
Bolt/Nut |
|
Material |
304 316L PVC lining |
See Table |
304 316L |
304 316L |
NBR PTFE |
304 316L |
4.Dimension table£º
|
DN |
A |
B |
C |
D |
E |
F |
G |
|
40 |
1400 |
1000 |
219 |
600 |
125 |
225 |
25 |
|
50 |
1550 |
1150 |
325 |
600 |
125 |
225 |
25 |
|
80 |
1600 |
1200 |
480 |
600 |
125 |
225 |
40 |
|
100 |
1600 |
1200 |
500 |
600 |
150 |
250 |
40 |
|
125 |
1900 |
1500 |
600 |
1100 |
150 |
250 |
50 |
|
150 |
2000 |
1600 |
800 |
1100 |
200 |
350 |
80 |

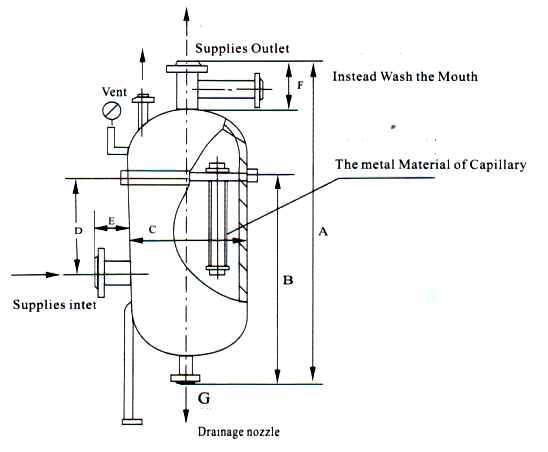

5.Drawing of Micropore Precision Filter
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium and pore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
