Magnetic Filter:

1.Manufacturing standard:HGJ532-91/GB150-98.

2.End type:Flange/Thread/Clamp.

3.Flange standard:GB/HG/JIS/ANSI/DIN.

4.PN:0.6—4Mpa/150—300LB.

5.Work temperature:150℃ or below.

6.Main material for construction:

Component

Body

Gasket

Bolt/Nut

Material

304

304L

316

316L

PTFE

304

316L

7.Dimension table:

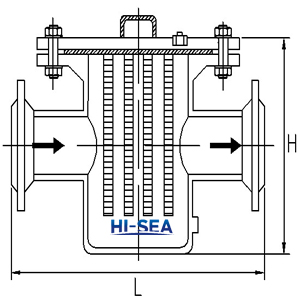

8.Drawing of magnetic filter:

Order Construction：

1.Please give indication of dimension，operating pressure。Filter element type，filter medium andpore size.

2.Please give clear indication of flange，material and operating if you need other standard.
