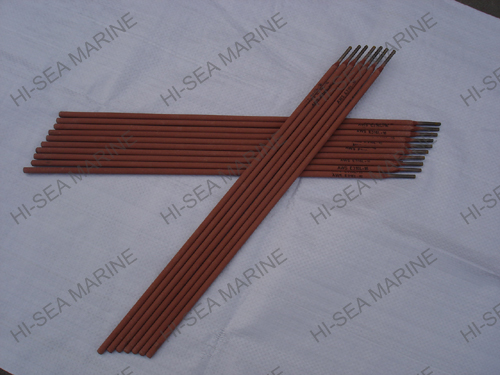

E308L-16 Stainless Steel Electrode
GB E308L-16 AWS E308L-16
Introduction: E308L-16 is a kind of ultra-low-carbon Cr19Ni10 stainless steel electrode with lime-titania type coating. The carbon content of the deposited metal is lower than or equal to 0.04%. It has excellent intercrystalline corrosion-resistance and welding performance. The coating has red-resistance, high strength and good blowhole-resistance. AC/DC
Uses: Used for welding ultra-low-carbon Cr19Ni10 stainless steel structures, and also used for 0Cr19Ni11Ti corrosion-resistant stainless steel structures whose working temperature is lower than 300¡æ. Mainly used for the production of equipment of synthetic fiber, chemical fertilizers, petroleum, etc.
Chemical Composition of Deposited Metal (%)
Chemical Composition
|
C
|
Mn
|
Si
|
S
|
P
|
Cu
|
Ni
|
Mo
|
Cr
|
Guarantee Value
|
¡Ü0.04
|
0.5~2.5
|
¡Ü0.90
|
¡Ü0.030
|
¡Ü0.040
|
¡Ü0.75
|
9.0~11.0
|
¡Ü0.75
|
18.0~21.0
|
Test Item
|
Rm(MPa)
|
A(%)
|
Guarantee Value
|
¡Ý520
|
¡Ý35
|
Electrode Diameter(mm)
|
¦Õ2.0
|
¦Õ2.5
|
¦Õ3.2
|
¦Õ4.0
|
¦Õ5.0
|
Welding Current (A)
|
40~80
|
50~100
|
70~130
|
100~160
|
140~200
|
