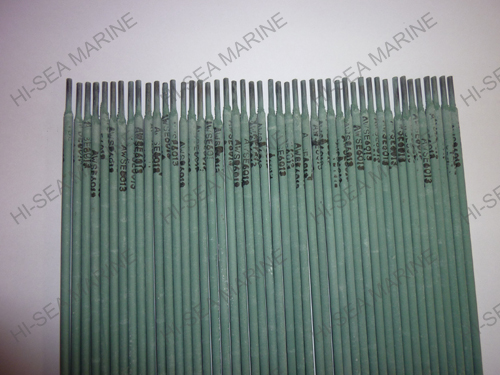

E6011 Carbon Steel Welding Electrodes(2.5mm-5.0mm)

E6011 Carbon Welding Electrodes( 2.5mm-5.0mm):

Diameter × Length (mm)
2.5 × 300, 2.5 × 350,
3.2 × 350, 5.0 × 450
4.0 × 400, 5.0 × 400
Package: 5Kg/box,4boxes/carton

Description:
AWS E6011 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties , the arc is stable ,the spatter is small. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and easy to restrike the arc.
Application:
Suitable for welding sheet metal structure made of low-carbon steel , such as ships, vehicles, building, and general machinery.

Chemical Composition of Rod(%):

C	Mn	Si	S	P
≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

Mechanical Properties of Deposited Metal:

Test Item	σ_b^(MPa)	σ_c^(MPa)	δ_s^(%)	Akv(°C)(J)
Guarantee Value	≥420	≥330	≥17	-

Recommended Welding Current:

Electrode Diameter(mm)	2.0	2.5	3.2	4.0	5.0
Current Range(A)	40-70	50-80	80-120	150-190	180-240

E6011 Carbon Steel Welding Electrodes(2.5mm-5.0mm)
