Electric Anchor Windlass

Electric Anchor Windlass

The windlass produced by our company is in line with the standard of GB4447-92. Some parts of them are approved by CCS, ABS, NK, BV, GL, KR, LRS and other classification societies. In accordance with the power supply, our windlasses are divided into electric windlass, hydraulic windlass. According to the drum distribution, the windlasses are divided into single type, symmetrical type and combined windlass mooring winch. Our windlasses have the advantages of compact and reasonable structure, large load capacity, excellent performance, safety and reliability, simple operation and long service life.

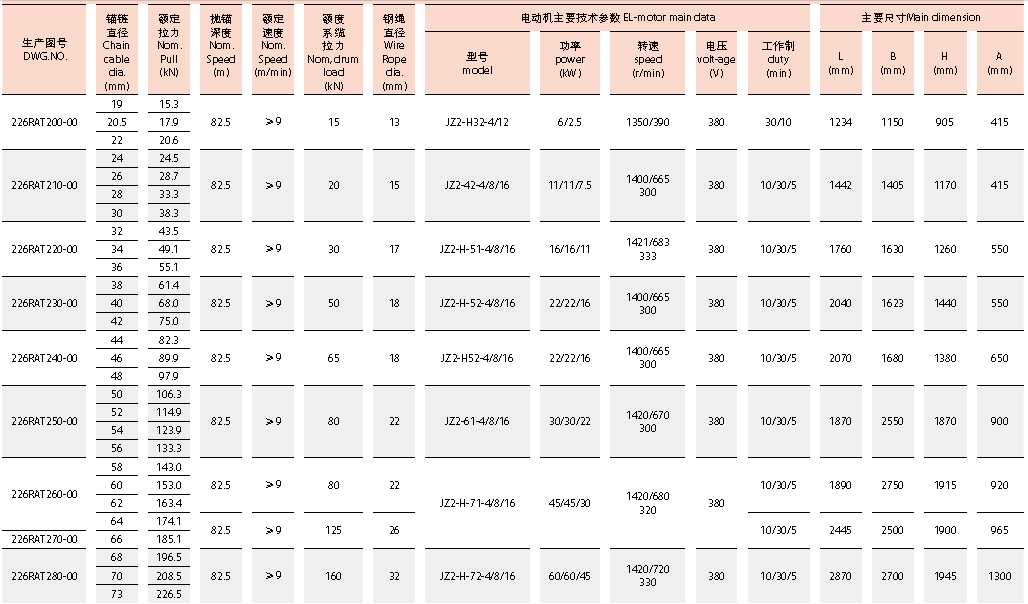

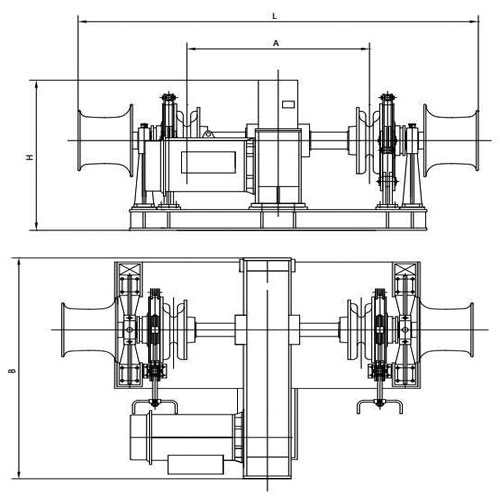

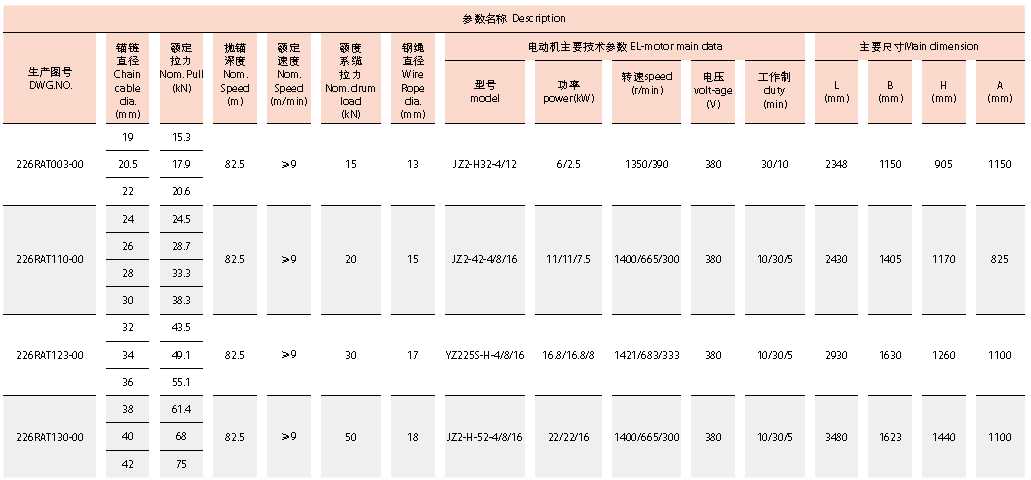

Symmetrical Electric Windlass (Drawing & Main Technical Data)

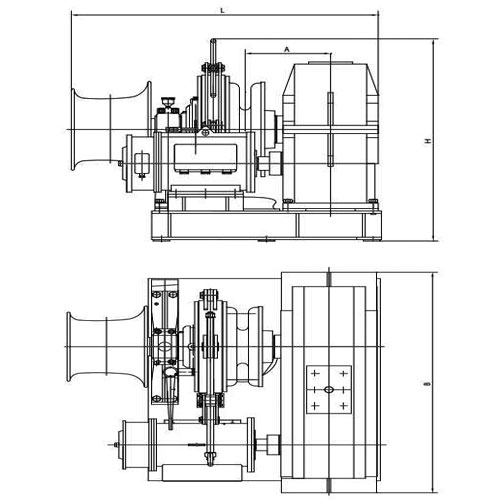

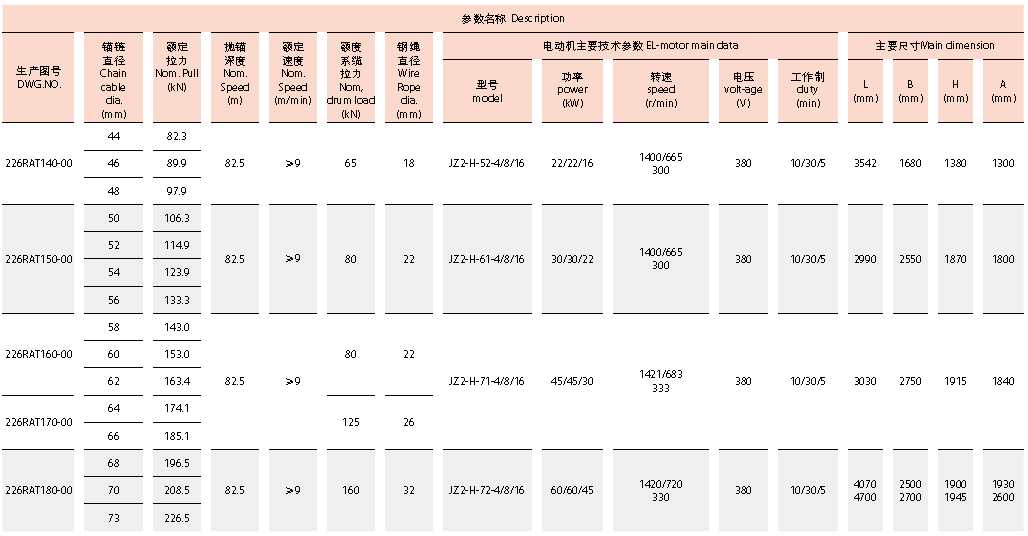

Single Electric Windlass (Drawing & Main Technical Data)

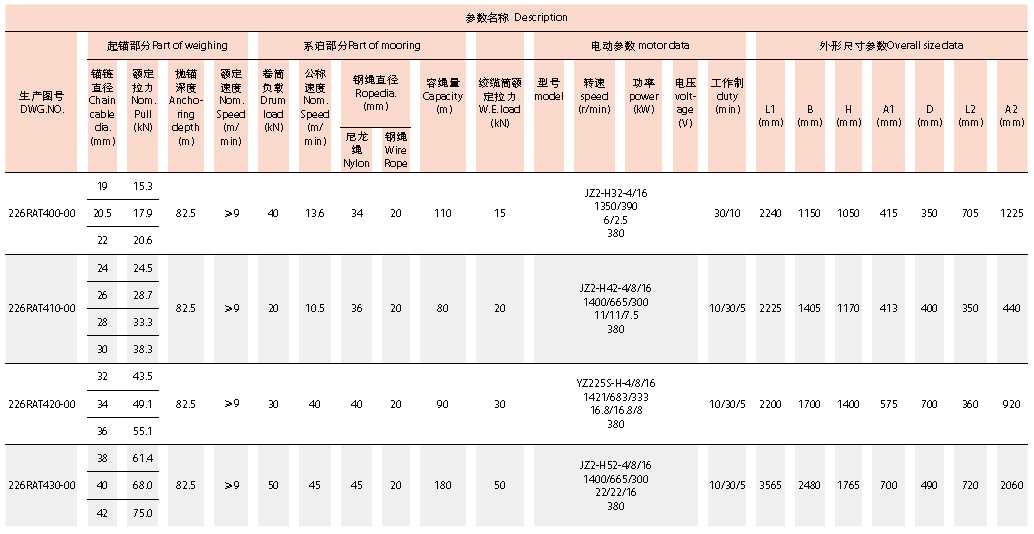

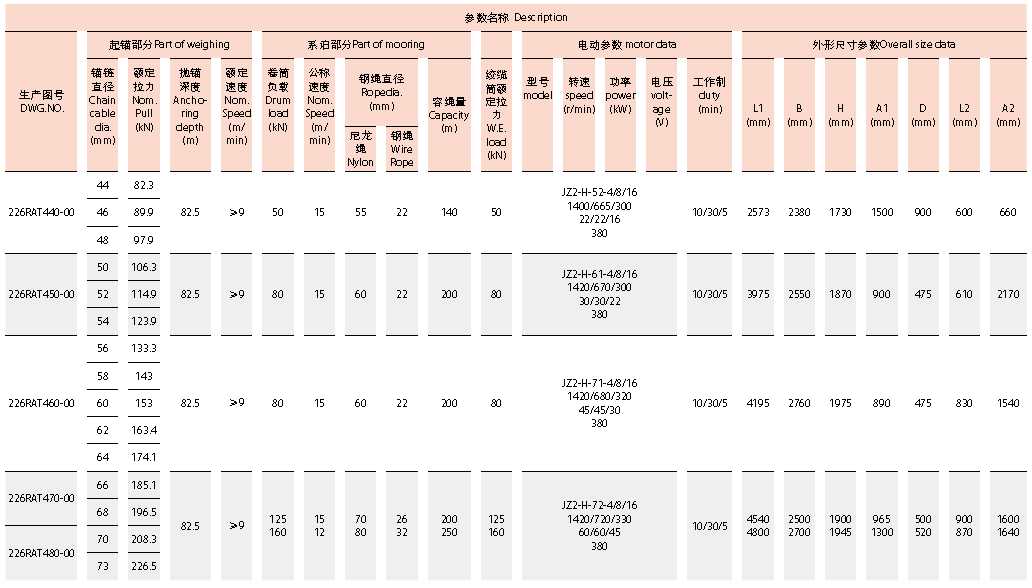

Symmetrical El-combined Windlass Mooring Winch (Drawing & Main Technical Data)

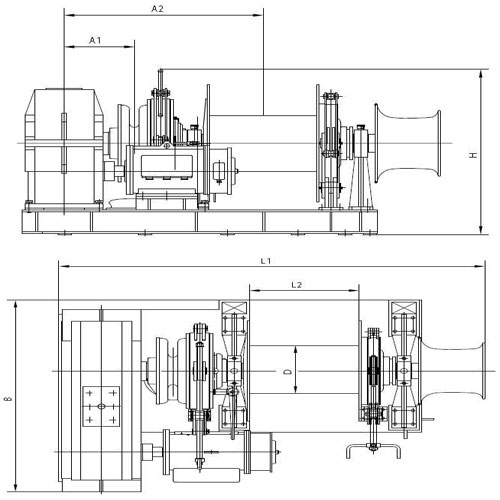

Single El-combined Windlass Mooring Winch (Drawing & Main Technical Data)
