Marine Windlass

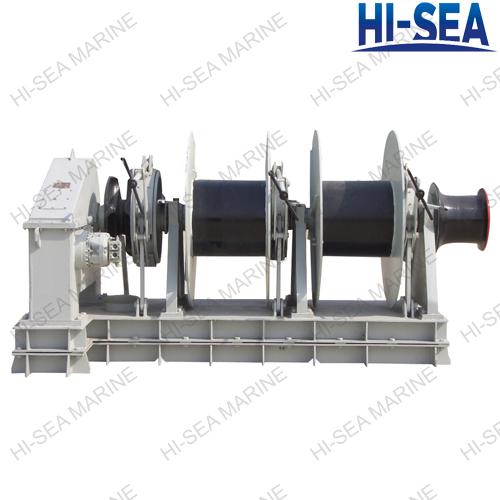

Whatever your anchor application, Hi-Sea Marine's line of anchor windlass offers a variety of styles and sizes to handle it. Our anchor windlass winches are designed for up to 160mm chain with a range of drive options available. Standard features include fabricated steel construction, gears hardened to exceed working load requirements, cluthed and braked drum and corrosion resistance. Electric or hydraulic drives are available along with warping heads. We can modify windlasses to suit your application and special operation requirements.

Hi-Sea Marine's anchor windlass winches have rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanism for brake and cluthes are designed for easy and safe manual operating, but may also be remotely operating by hydraulic cylinders. The brakes are easily adjustable, and all transfer of external forces to the deck construction is by the foundation bolts. The winch design provides easy access to all points for lubrication and inspections.

Certificates: CCS, DNV-GL, ABS, LR, BV, RINA, NK, KR, etc

Main Technical Specification(Electric combined anchor mooring winch)

Chain Dia.(mm)	Working Load(kN)	Working Speed(m/min)	Mooring Pull(kN)	Mooring Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
14/16/17.5	8.3/10.9/13.0	≥9	8	≥12	Ф11х100	4.3/1.7
19/20.5/22	15.3/17.9/20.6	≥9	15	≥12	Ф13х120	8.5/3.5
24/26	24.5/28.7	≥9	20	≥12	Ф15х120	8.5/3.5
28/30	33.3/38.3	≥9	30	≥12	Ф18х150	11/11/7.5
32/34/36	43.5/49.1/55.1	≥9	40	≥12	Ф20.5х150	16/16/11
38/40/42	61.4/68.0/75.0	≥9	50	≥12	Ф20.5х150	22/22/16
44/46/48	82.3/89.9/97.9	≥9	60	≥12	Ф26х200	30/30/22
50/52/54	106.3/114.9/123.9	≥9	60	≥15	Ф26х200	30/30/22
56/58/60	133.3/143.0/153.0	≥9	80	≥15	Ф26х200	45/45/30
62/64	163.4/174.1	≥9	80	≥15	Ф30х200	45/45/30
66/68	185.1/196.5	≥9	100	≥15	Ф30х200	45/45/30
70/73	208.3/226.5	≥9	120	≥15	Ф32.5х200	60/60/45
76/78	245.5/258.6	≥9	125	≥15	Ф32.5х200	60/60/45
81/84	311.7/335.2	≥9	140	≥15	Ф36х200	75/75/36
78/90	359.5/384.8	≥9	150	≥15	Ф38х200	75/75/36
92/95	402.0/428.7	≥9	200	≥15	Ф40х200	85/85/64
97/100	446.9/475.0	≥9	250	≥15	Ф42х200	100/100/50
105/107	523.7/543.8	≥9	300	≥15	Ф44х200	110/110/55
112/114	595.8/617.3	≥9	350	≥15	Ф48х200	132/132/66

Main Technical Specification(Hydraulic windlass)

Chain Dia.(mm)	Working Load(kN)	Supporting Load(kN)	Working Speed(m/min)	Warping Load(kN)	Motor Power(kW)
14/16/17.5	8.3/10.9/13.0	51/67/80	≥9	8	5.5
19/20.5/22	15.3/17.9/20.6	95/110/126	≥9	10	7.5
24/26	24.5/28.7	149/175	≥9	20	11
28/30	33.3/38.3	202/231	≥9	30	15
32/34/36	43.5/49.1/55.1	261/294/329	≥9	30	22
38/40/42	61.4/68.0/75.0	365/402/442	≥9	40	30
44/46/48	82.3/89.9/97.9	483/526/570	≥9	50	37
50/52/54	106.3/114.9/123.9	617/664/713	≥9	50	45
56/58/60	133.3/143.0/153	764/816/870	≥9	60	55
62/64	163.4/174.1	925/982	≥9	80	55
66/68	185.1/196.5	1040/1098	≥9	100	75
70/73	208.3/226.5	1160/1254	≥9	100	75
76/78	245.5/258.6	1350/1416	≥9	125	90
81/84	311.7/335.2	2171/2320	≥9	140	110
87/90	359.5/384.8	2473/2629	≥9	150	120
92/95	402.0/428.7	2735/2898	≥9	200	130
97/100	446.9/475.0	2995/3162	≥9	250	150
05/107	523.7/543.8	3612/3750	≥9	300	180
112/114	595.8/617.3	4109/4228	≥9	350	200

Main Technical Specification(Hyd. anchor mooring winch)

Chain Dia.(mm)	Working Load(kN)	Working Speed(m/min)	Mooring Pull(kN)	Mooring Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
14/16/17.5	8.3/10.9/13.0	≥9	8	≥12	Ф11х100	5.5
19/20.5/22	15.3/17.9/20.6	≥9	15	≥12	Ф13х120	7.5
24/26	24.5/28.7	≥9	20	≥12	Ф15х120	11
28/30	33.3/38.3	≥9	30	≥12	Ф18х150	15
32/34/36	43.5/49.1/55.1	≥9	40	≥12	Ф20.5х150	22
38/40/42	61.4/68.0/75.0	≥9	50	≥12	Ф20.5х150	30
44/46/48	82.3/89.9/97.9	≥9	60	≥12	Ф26х200	37
50/52/54	106.3/114.9/123.9	≥9	60	≥15	Ф26х200	45
56/58/60	133.3/143.0/153.0	≥9	80	≥15	Ф26х200	55
62/64	163.4/174.1	≥9	80	≥15	Ф30х200	55
66/68	185.1/196.5	≥9	100	≥15	Ф30х200	75
70/73	208.3/226.5	≥9	120	≥15	Ф32.5х200	75
76/78	245.5/258.6	≥9	125	≥15	Ф32.5х200	90
81/84	311.7/335.2	≥9	140	≥15	Ф36х200	110
78/90	359.5/384.8	≥9	150	≥15	Ф38х200	120
92/95	402.0/428.7	≥9	200	≥15	Ф40х200	130
97/100	446.9/475.0	≥9	250	≥15	Ф42х200	150
105/107	523.7/543.8	≥9	300	≥15	Ф44х200	180
112/114	595.8/617.3	≥9	350	≥15	Ф48х200	200

Main Technical Specification(Electric windlass)

Chain Dia.(mm)	Working Load(kN)	Supporting Load(kN)	Working Speed(m/min)	Warping Load(kN)	Motor Power(kW)
12.5	5.9	30	≥9	5	3/1.2
14/16/17.5	8.3/10.9/13.0	51/67/80	≥9	8	4.3/1.7
19/20.5/22	15.3/17.9/20.6	95/110/126	≥9	10	8.5/3.5
24/26	24.5/28.7	149/175	≥9	20	8.5/3.5
28/30	33.3/38.3	202/231	≥9	30	11/11/7.5
32/34/36	43.5/49.1/55.1	261/294/329	≥9	30	16/16/11
38/40/42	61.4/68.0/75.0	365/402/442	≥9	40	22/22/16
44/46/48	82.3/89.9/97.9	483/526/570	≥9	50	30/30/22
50/52/54	106.3/114.9/123.9	617/664/713	≥9	50	30/30/22
56/58/60	133.3/143.0/153	764/816/870	≥9	60	45/45/30
62/64	163.4/174.1	925/982	≥9	80	45/45/30
66/68	185.1/196.5	1040/1098	≥9	100	45/45/30
70/73	208.3/226.5	1160/1254	≥9	100	60/60/45
76/78	245.5/258.6	1350/1416	≥9	125	60/60/45
81/84	311.7/335.2	2171/2320	≥9	140	75/75/36
87/90	359.5/384.8	2473/2629	≥9	150	75/75/36
92/95	402.0/428.7	2735/2898	≥9	200	85/85/64
97/100	446.9/475.0	2995/3162	≥9	250	100/100/50
05/107	523.7/543.8	3612/3750	≥9	300	110/110/55
112/114	595.8/617.3	4109/4228	≥9	350	132/132/66
