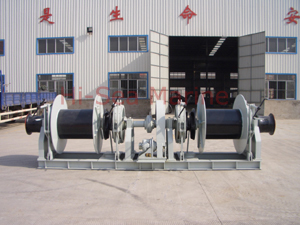

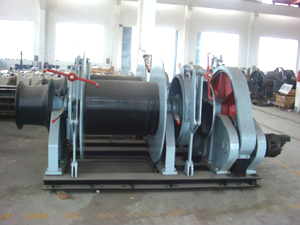

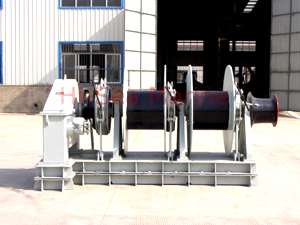

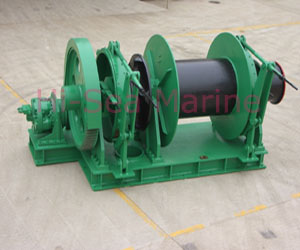

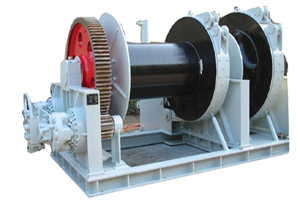

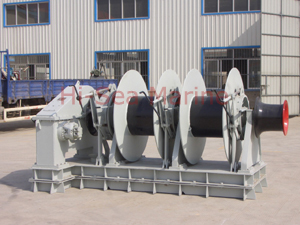

Hydraulic Windlass Mooring Winches

Hydraulic Windlass Mooring Winches:

Whatever your anchor application, Hi-Sea Marine's line of anchor windlass offers a variety of styles and sizes to handle it. Our anchor windlass winches are designed for up to 160mm chain with a range of drive options available. Standard features include fabricated steel construction, gears hardened to exceed working load requirements, cluthed and braked drum and corrosion resistance. Electric or hydraulic drives are avaliable along with warping heads. We can modify windlasses to suit your application and special operationg requirements.

Hi-Sea Marine's anchor windlass winches have rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanism for brake and cluthes are designed for easy and safe maual operating, but may also be remotedly operating by hydraulic cylinders. The brakes are easily adjustable, and all transfer of external forces to the deck construction is by the foundation bolts. The winch design provides easy access to all points for lubrication and inspections.


Main Technical Specification

Chain Dia.(mm)

Working Load(kN)

Working Speed(m/min)

Mooring Pull(kN)

Mooring Speed(m/min)

Drum Capacity(m)

Motor Power(kW)

14/16/17.5

8.3/10.9/13.0

¡Ý9

8

¡Ý12

§¶11§ç100

5.5

19/20.5/22

15.3/17.9/20.6

¡Ý9

15

¡Ý12

§¶13§ç120

7.5

24/26

24.5/28.7

¡Ý9

20

¡Ý12

§¶15§ç120

11

28/30

33.3/38.3

¡Ý9

30

¡Ý12

§¶18§ç150

15

32/34/36

43.5/49.1/55.1

¡Ý9

40

¡Ý12

§¶20.5§ç150

22

38/40/42

61.4/68.0/75.0

¡Ý9

50

¡Ý12

§¶20.5§ç150

30

44/46/48

82.3/89.9/97.9

¡Ý9

60

¡Ý12

§¶26§ç200

37

50/52/54

106.3/114.9/123.9

¡Ý9

60

¡Ý15

§¶26§ç200

45

56/58/60

133.3/143.0/153.0

¡Ý9

80

¡Ý15

§¶26§ç200

55

62/64

163.4/174.1

¡Ý9

80

¡Ý15

§¶30§ç200

55

66/68

185.1/196.5

¡Ý9

100

¡Ý15

§¶30§ç200

75

70/73

208.3/226.5

¡Ý9

120

¡Ý15

§¶32.5§ç200

75

76/78

245.5/258.6

¡Ý9

125

¡Ý15

§¶32.5§ç200

90

81/84

311.7/335.2

¡Ý9

140

¡Ý15

§¶36§ç200

110

78/90

359.5/384.8

¡Ý9

150

¡Ý15

§¶38§ç200

120

92/95

402.0/428.7

¡Ý9

200

¡Ý15

§¶40§ç200

130

97/100

446.9/475.0

¡Ý9

250

¡Ý15

§¶42§ç200

150

105/107

523.7/543.8

¡Ý9

300

¡Ý15

§¶44§ç200

180

112/114

595.8/617.3

¡Ý9

350

¡Ý15

§¶48§ç200

200
