Hy-combined Windlass Mooring Winch

Hy-combined Windlass Mooring Winch

Combined windlass/mooring winch can be used as windlass alone and also used as a machine for automatic or non automatic mooring winch. Due to the difference of driving form, the windlasses are divided into electric windlasses and hydraulic windlasses.

Our company mainly supply the following types: (symmetrical&single type) electric windlass, (symmetrical&single type) hydraulic windlass, (symmetrical&single type) el-combined windlass/mooring winch, (symmetrical&single type) hy-combined windlass/mooring winch.

Certificate: CCS, ABS, BV, NK, LR, LRS, GL etc.

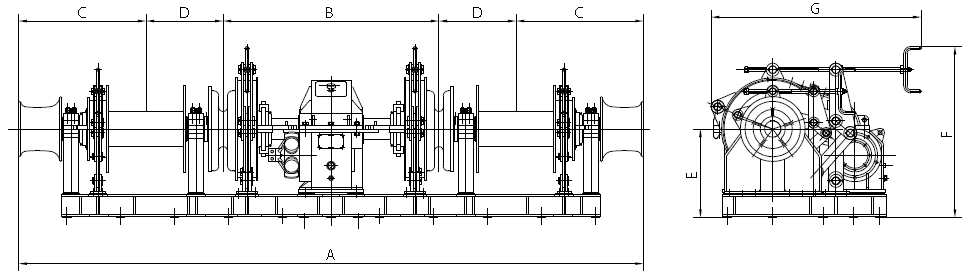

Symmetrical Hy-combined Windlass Mooring Winch Drawing

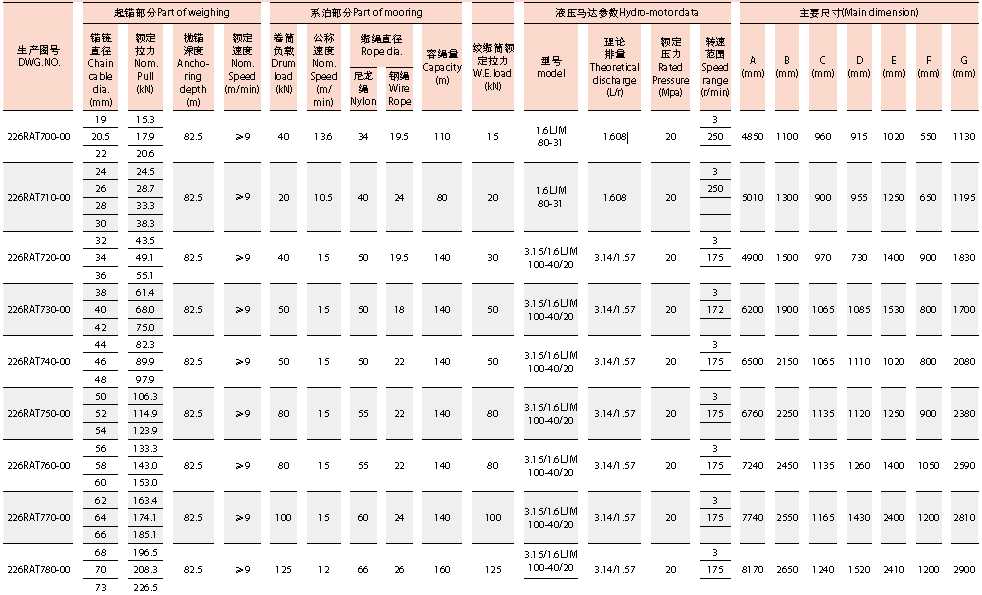

Main Technical Specification (Symmetrical Hy-combined Windlass Mooring Winch)

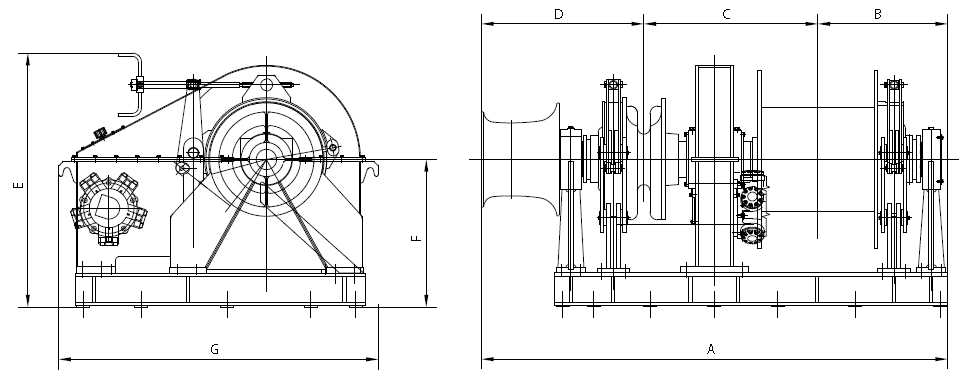

Single Hy-combined Windlass Mooring Winch Drawing

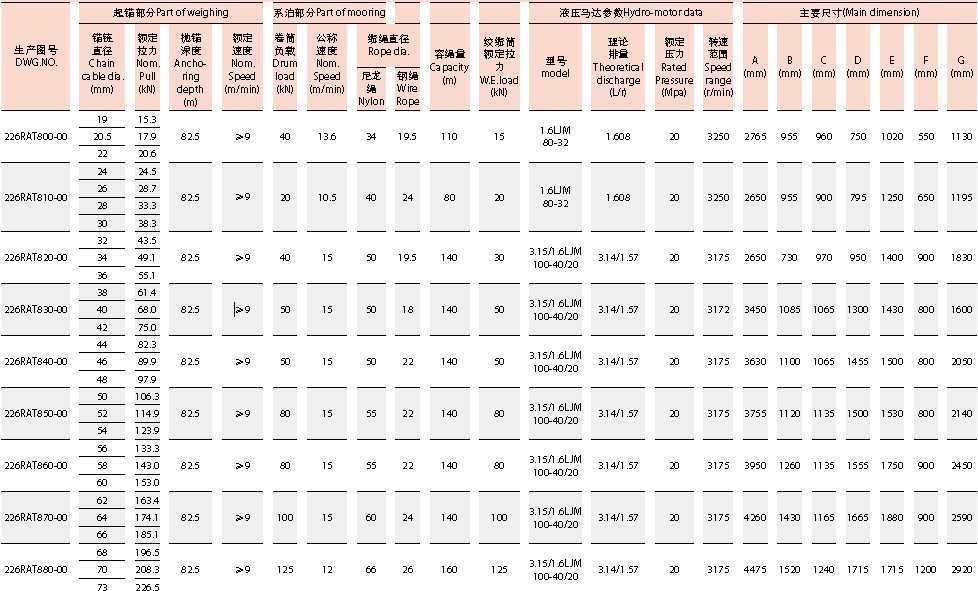

Main Technical Data (Single Hy-combined Windlass Mooring Winch)
