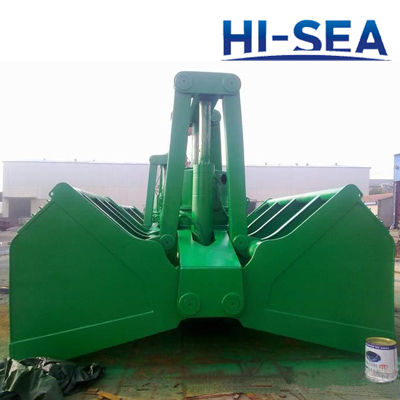

Electric Hydraulic Clamshell Grab for Excavator
Electric hydraulic clamshell grab for excavator is mainly used for loading and unloading of steel scrap, waste, stones and other irregular bulk cargo. It is widely used in steel plant, waste incineration, port, railway transit and other occasions. Its advanced system design, combined with the imported hydraulic components make it has performance of security, stability, long service life and low maintenance.
Product Details:
1. Imported hydraulic components
2. High efficiency and flexibility
3. Low operation height
4. Convenient operation
5. Using 3D Virtual Design to secure outward appearance
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
|
Volume |
Dead Weight |
Motor Power(kw) |
A |
B |
C |
D |
E |
|
|
m³ |
T |
380V 50HZ |
440V 60HZ |
mm |
mm |
mm |
mm |
mm |
|
1.5-3 |
3.5 |
18.5 |
21 |
2242 |
3020 |
2975 |
2605 |
1872 |
|
3-6 |
5.5 |
22 |
26 |
2520 |
3153 |
3019 |
2897 |
2516 |
|
4-8 |
6.5 |
30 |
35 |
2800 |
3350 |
3488 |
3160 |
2965 |
|
5-10 |
7 |
30 |
35 |
2850 |
3700 |
3620 |
3200 |
3050 |
|
6-12 |
10 |
45 |
52 |
3540 |
4327 |
3990 |
3413 |
3600 |
|
8-15 |
11 |
45 |
52 |
3540 |
4027 |
3785 |
3325 |
3400 |
|
10-18 |
13 |
45 |
52 |
3400 |
4360 |
4500 |
3900 |
3900 |

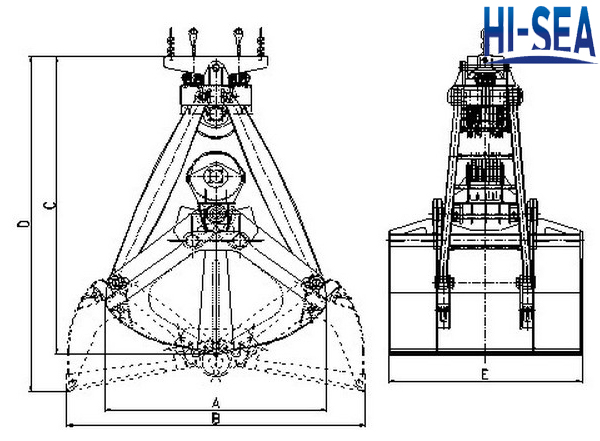

Sketch of the electric hydraulic clamshell grab for excavator
