Excavator Hydraulic Orange Peel Grab
Excavator hydraulic orange peel grab shall be designed by excavator parameters. The opening and closing of it is controlled by excavator hydraulic system. It can load and clear up stone, scrap steel, and is suitable to work site like construction site, stockyard, steel plant. The grab usually has 2-6 jaws, and is suitable for excavator with 2t-10t lifting capacity.
Product Details:
1. Handling Scrap Metal, Waste Lump and Lump Products
2. Simple structure, easy to operation, and stable in working under any circumstances.
3. Designs to customer specification, including volume and unladen weight;
4. Assembly and commissioning by SHYP's specialist technicians;
5. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
|
Rated Capacity |
Volume |
Nomber of Jaw |
Dead Weight |
A |
B |
C |
D |
E |
|
T |
m³ |
m |
T |
mm |
mm |
mm |
mm |
mm |
|
2 |
0.3 |
4 |
1.06 |
1290 |
1960 |
1580 |
1410 |
70 |
|
3 |
0.4 |
4 |
1.15 |
1430 |
2270 |
1680 |
1460 |
70 |
|
4 |
0.5 |
4 |
1.45 |
1680 |
2400 |
1900 |
1620 |
70 |
|
6 |
0.8 |
6 |
1.6 |
1890 |
2700 |
2060 |
1710 |
70 |
|
6 |
0.8 |
6 |
1.7 |
1890 |
2700 |
2060 |
1710 |
70 |
|
7 |
1 |
6 |
2.4 |
1940 |
3120 |
2880 |
2490 |
100 |
|
8 |
1.6 |
6 |
2.55 |
2140 |
3390 |
3090 |
2620 |
100 |
|
9 |
2 |
6 |
2.65 |
2280 |
3620 |
3210 |
2880 |
100 |

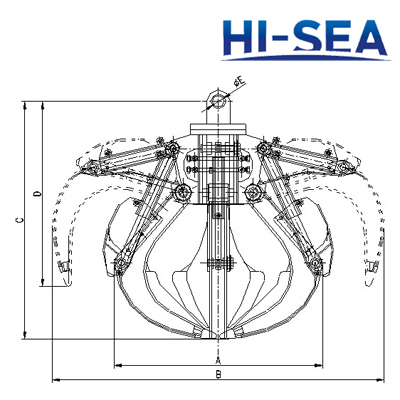

Sketch of the excavator hydraulic orange peel grab
