Mechanical Steel Scrap Grab
Mechanical steel scrap grab can work properly in high temperature, underwater, thick dust and harsh environment. Its six jaw can be opened and closed according to the size of material, especially suitable for loading and unloading large materials such as steel scrap block. All kinds of size can be designed and manufactured according to customers requirements.
Product Details:
1. Rated Capacity: 5-10 ton
2. Grab Volume: 1.2-2.75 m³
3. Dead Weight: 2.4-5.9 ton
4. Maximum capacity.
5. Low empty weight.
6. Low cost of maintenance.
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
|
Rated Capacity |
Dead Weight |
Volume |
Wire Rope Dia. |
A |
B |
C |
|
T |
T |
m³ |
mm |
mm |
mm |
mm |
|
5 |
2.4 |
1.2 |
15 |
2.38 |
3 |
3.8 |
|
8 |
4 |
1.8 |
17.5 |
2.65 |
3.3 |
4 |
|
10 |
5.9 |
2.75 |
21.5 |
3.18 |
4.2 |
4.9 |

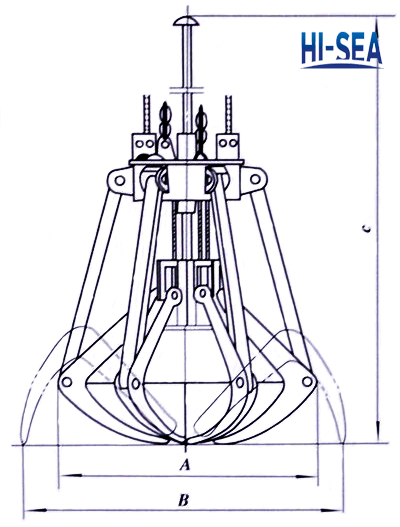

Sketch of the mechanical steel scrap grab
