Iron Scraps Grab

Orange peel Iron Scraps Grab

1.Can work under any circumstances

2.Powerful digging force
3.Easy operation & maintance
Application

These grabs are capable of handling steel scraps, pig iron, ore, waste and such bulk materials.
Hi-sea provides:
1. Designs to customer specification, including volume and unladen weight
2. Fast spare-parts delivery across the world
3. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity	Volume	Dead Weight	Wire Rope Dia.
T	m³	T	mm
5	3	3.2	16-18
10	6	5.7	22-24
16	10	8	28
25	5.6	11	32
32	6	14.5	36-40
40	8	17	40-44

Iron Scraps Grab

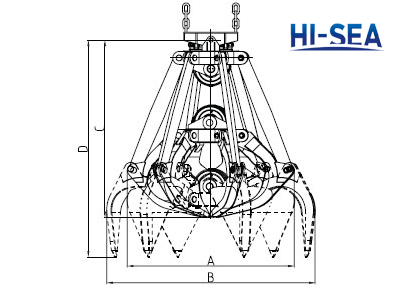

Sketch of the iron scraps grab
