Dredging Grab
Excavator Dredging Grab
[Search Related Products]

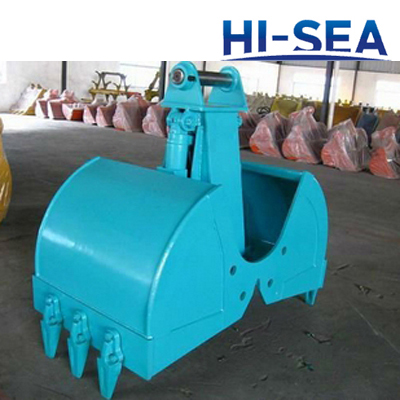

Excavator Dredging Grab
It shall be designed by excavator paramaters. The opening and closing of grab is controlled by excavator hydraulic system. It can be used to handle mud, hard clay, iron sand and so on. This grab has simple structure, low failure rate, convenient operation, can accurately complete opening and closing action under various states.
Product Details:
1. Type: standard/ heavy duty
2. Material: Q345B/Q460/NM360/NM400/WH60/Hardox400,500
3. Rated capacity: 1.04-7.42 ton
4. Volume: 0.4-4.2 m³
5. Suitable for all kinds of lifting applicances
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4.Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity | Dead Weight | Volume | A | B | C | D | E |
KG | KG | m³ | mm | mm | mm | mm | mm |
1040 | 560 | 0.4 | 1260 | 810 | 1100 | 1350 | 950 |
1250 | 650 | 0.5 | 1350 | 870 | 1200 | 1460 | 1020 |
1530 | 770 | 0.63 | 1450 | 930 | 1290 | 1570 | 1100 |
1880 | 920 | 0.8 | 1510 | 960 | 1340 | 1635 | 1250 |
2270 | 1070 | 1 | 1620 | 1030 | 1880 | 1760 | 1360 |
2740 | 1240 | 1.25 | 1740 | 1100 | 1450 | 1895 | 1450 |
3420 | 1500 | 1.6 | 1890 | 1560 | 1690 | 2060 | 1580 |
4140 | 1740 | 2 | 2030 | 1290 | 1820 | 2220 | 1700 |
5010 | 2010 | 2.5 | 2180 | 1385 | 1960 | 2390 | 1830 |
5770 | 2170 | 3 | 2315 | 1470 | 2085 | 2540 | 1940 |
6460 | 2260 | 3.5 | 2430 | 1540 | 2195 | 2670 | 2040 |
7420 | 2380 | 4.2 | 2580 | 1635 | 2330 | 2840 | 2170 |
Sketch of the excavator dredging grab
Excavator Dredging Grab-B
