Dredging Grab

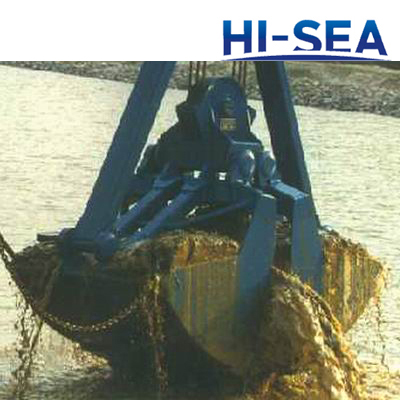

Hydraulic Dredging Clamshell Grab
[Search Related Products]
Hydraulic Dredging Clamshell Grab
Hydraulic dredging clamshell grab has simple structure, low failure rate, convenient operation, and can accurately complete opening and closing action under various states. It manufactured of high wear resistant steels. This grab has Used 3D virtual design to make the weight allocation more reasonable, and has longer service life.
Product Details:
1. Imported hydraulic components
2. Suitable for all kinds of lifting applicances
3. High efficiency and flexibility
4. Volume: 1.5-22m³
5. Rated capacity: 8-40 ton
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4.Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Volume |
Dead Weight |
A |
B |
C |
D |
E |
T |
m³ |
T |
mm |
mm |
mm |
mm |
mm |
8 |
1.5-3 |
3.5 |
2242 |
3020 |
2975 |
2605 |
1872 |
14 |
3-6 |
5.5 |
2520 |
3153 |
3019 |
2897 |
2516 |
16 |
4-8 |
6.5 |
2800 |
3350 |
3488 |
3160 |
2965 |
20 |
5-10 |
7 |
2850 |
3700 |
3620 |
3200 |
3050 |
25 |
6-12 |
10 |
3540 |
4327 |
3990 |
3413 |
3600 |
28 |
8-15 |
11 |
3540 |
4027 |
3785 |
3325 |
3400 |
32 |
10-18 |
13 |
3400 |
4360 |
4500 |
3900 |
3950 |
40 |
12-22 |
17 |
3849 |
4471 |
4604 |
4320 |
4500 |

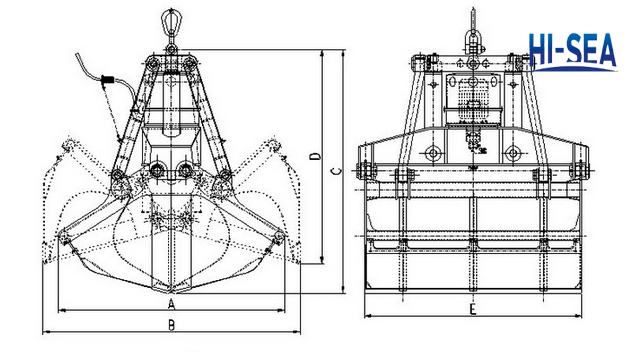

Sketch of the hydraulic dredging clamshell grab
Hydraulic Dredging Clamshell Grab
