Dredging Grab
Motor Hydraulic Dredging Grab
[Search Related Products]

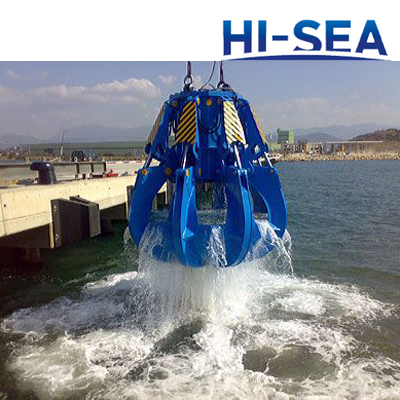

Motor Hydraulic Dredging Grab
After years of research, we have series of dredging grab, the crane lifting capacity of them is from 6T to 200T. Motor hydraulic dredging grab is a kind of effective tool to work underwater. The hydraulic system have multiple seals to prevent sand and water ingress. It greatly save the labor force and production cost.
Product Details:
1. Rated capacity: 6-32 ton
2. Volume: 3-32m³
3. Long service life motor hydraulic dredging grab
4. High tensile steel used throughout. Wear resistant steel used on all spade tips.
5. High pressure cylinders.
6. Using 3D Virtual Design to secure outward appearance, grabs can be customized
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
|
Rated Capacity |
Volume |
Dead Weight |
Crane Capacity |
|
T |
m³ |
T |
T |
|
6 |
3-6 |
4 |
10 |
|
7.5 |
3-6 |
4.5 |
12 |
|
10 |
4-8 |
6 |
16 |
|
12.5 |
5-10 |
7.5 |
20 |
|
15.3 |
6-12 |
8.7 |
24 |
|
16 |
6-12 |
9 |
25 |
|
18 |
6-15 |
10 |
28 |
|
23 |
8-20 |
13 |
36 |
|
25.2 |
10-30 |
14.8 |
40 |
|
32 |
12-30 |
18 |
50 |
