Underwater Four Ropes Dredging Grab
It is a kind of special underwater dredging and salvage grab operating with the crane ship, and is suitable for dredging, desilting and so on. It is mainly used to dig up the sludge, iron plate sand and stones. Because of the sticky underwater stuff clean resistance, higher requirements of the material is needed.
Product Details:
1. Rated capacity: 6-110 ton
2. Volume: 1-16m³
3. High efficiency,conomical and practical
4. Simple structure, easy to operation
5. Sable in working under any circumstances
6. Powerful digging force;
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Dead Weight |
Volume |
A |
B |
C |
D |
E |
T |
T |
m³ |
mm |
mm |
mm |
mm |
mm |
6 |
4 |
1 |
2380 |
3458 |
3533 |
4083 |
1320 |
12 |
6.5 |
1.5 |
3020 |
4039 |
3772 |
4532 |
1500 |
20 |
8 |
5 |
3260 |
5042 |
4502 |
5280 |
1820 |
30 |
13 |
5 |
3740 |
5450 |
4942 |
5916 |
2012 |
55 |
35 |
5.5 |
3960 |
5812 |
5614 |
6565 |
2150 |
45 |
25 |
4 |
3840 |
5657 |
5748 |
6715 |
1950 |
45 |
36 |
5 |
3600 |
5947 |
6164 |
7125 |
1940 |
45 |
28 |
8 |
4040 |
6632 |
6494 |
7364 |
2102 |
55 |
32 |
5 |
3960 |
5734 |
7194 |
8167 |
1940 |
70 |
48 |
16 |
5130 |
7712 |
7415 |
8724 |
2954 |
80 |
60 |
8 |
4130 |
6695 |
7189 |
7753 |
2530 |
55 |
55 |
11 |
5120 |
7780 |
7553 |
8924 |
220 |
110 |
110 |
9 |
5465 |
7202 |
8666 |
10264 |
3000 |

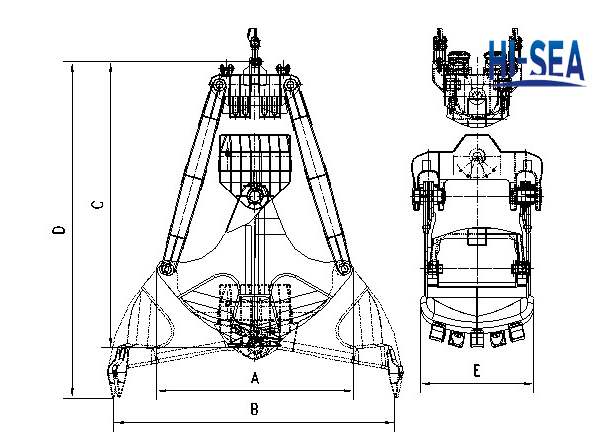

Sketch of the underwater four rope gredging grab

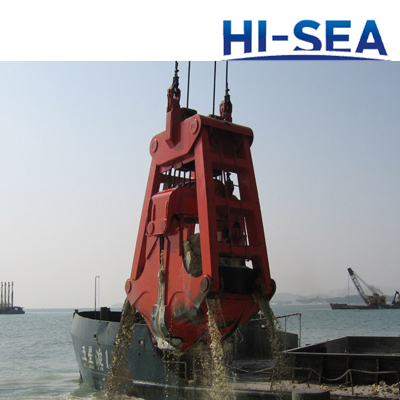

Underwater Four Ropes Dredging Grab
