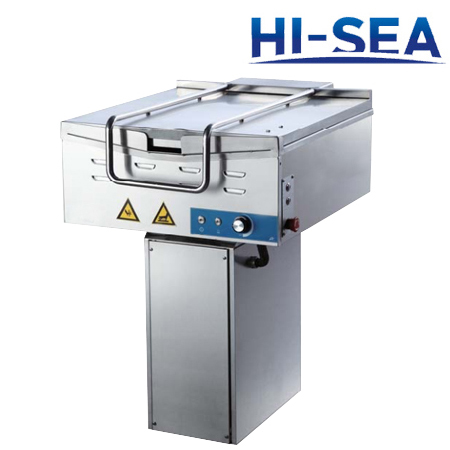

Marine Automatic Tilting Frying Pan
[Search Related Products]
Marine Automatic Tilting Frying Pan
Marine Automatic Tilting Frying Pan is an important marine kitchen device. It has compact structure which is space-saving. The marine automatic tilting frying pan equips 19mm thick steel frying plate. Its pan skirt and exterior is made of SUS304 stainless steel. The tilt of the frying pan is controlled by a smart DC driving linear actuator which assures easy and smooth tilting up and down. The marine automatic tilting frying pan heats up quickly and evenly. It is easy to clean and maintain. The protection grade is IP44. In addition to the marine automatic tilting frying pan, we supply marine manual tilting frying pan. If you are interested in our products, welcome to contact us.
Features
• Automatic type
• 19mm thick steel frying pan
• SUS304 pan skirt and exterior
• To equip a smart DC driving linear actuator
• IP44 protection
• Low consumption
• A long service life
Specifications
Model |
Capacity |
Rating |
Voltage |
Size |
Net Weight |
HSB40E |
40L |
9kW |
380-415V/3/50Hz 440-480V/3/60Hz |
650¡Á800¡Á900mm |
90kg |
HSB60E |
60L |
9kW |
380-415V/3/50Hz 440-480V/3/60Hz |
850¡Á800¡Á900mm |
125kg |
HSIP30 |
30L |
9kW |
220/380/440/480V-3P-50/60Hz |
650¡Á800¡Á900mm |
|
HSIP50 |
50L |
9kW |
800¡Á800¡Á900mm |
|

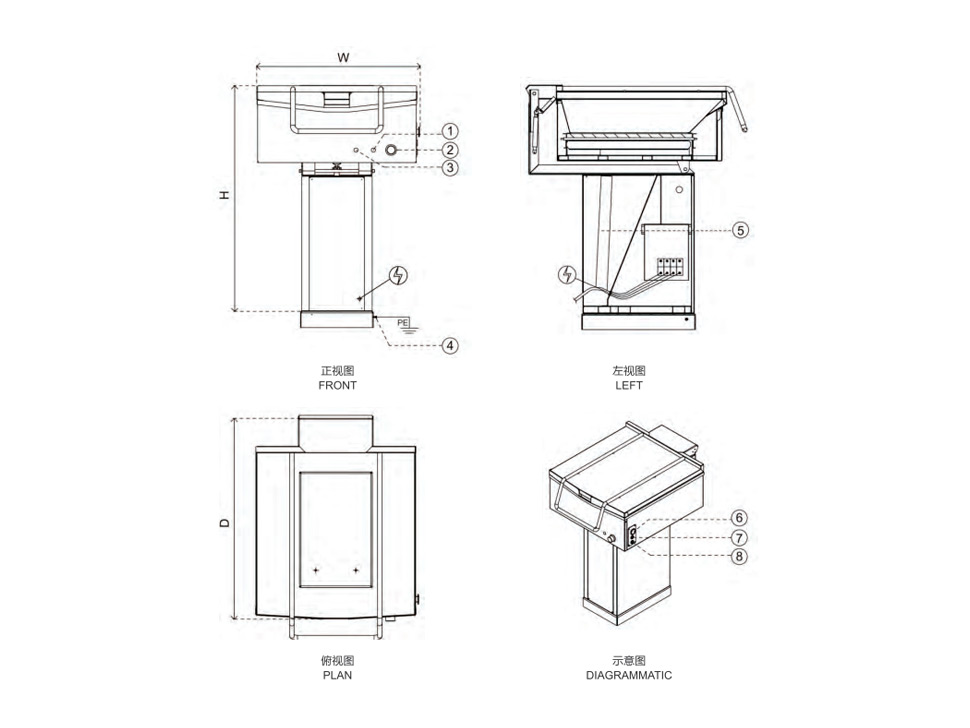

Drawing of Marine Automatic Tilting Frying Pan
¢Ù heating pilot light
¢Ú thermostat knob
¢Û power pilot light
¢Ü earthing
¢Ý DC linear actuator
¢Þ emergency shut off
¢ß tilting -up switch
¢à tilting down switch
HSIP30
