Marine Induction Range

Marine Induction Range

The marine induction range is complete stainless steel construction. It employs imported high-power IGBT and military-rank electric components. There is a liquid crystal display which shows the condition of the equipment in real time. It employs automatic power adjustment setting which controls heating easily. Besides, it adopts a stainless steel swivel faucet which is durable. The marine induction range is low consumption. Its thermal efficiency is over 90%. It is safe to use, easy to clean and simple to install. There are four models that you can choose from. If you want to know more details, welcome to contact us.

Features

• Complete stainless steel structure

• Low power consumption

• High heating efficiency and high safety coefficient

• Durable and reliable electric parts

• With handrails

• S/s swivel faucet

Specifications

Model	HS-BIR1	HS-BIR2	HS-BIR3	HS-BIR4
Wok Number	1	1	2	2
Voltage	380-415V-3PH-50Hz 440-480V-3PH-60Hz
Power (kw)	5	8/12	10	16/24
Dimension (W×D×H) (mm)	700×700×850	800×900×850	1500×700×850	1800×900×850
Weight (kg)	80	90	125	150

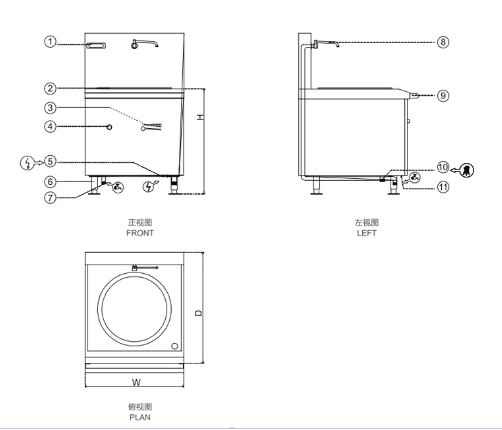

Drawing of Marine Induction Range

①display

②heater top

③ power adjusting switch

④ power switch

⑤ cable gland

⑥ marine adjustable leg

⑦ inlet

⑧ faucet

⑨ handrail

⑩ drain

⑪earthing
