Marine Electric Deck Oven

[Search Related Products]

Marine Electric Deck Oven

Marine Electric Deck Oven

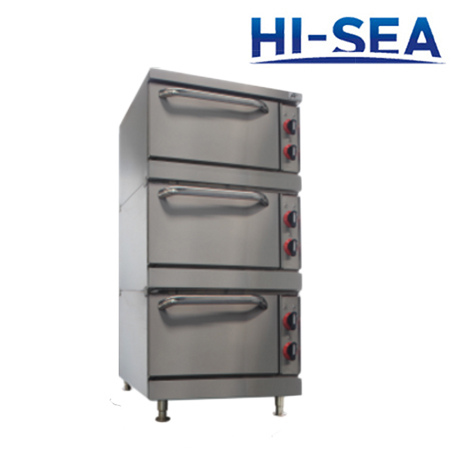

Marine Electric Deck Oven is a kind of marine kitchen device. The oven is deck type which has the advantages of large capacity, low consumption, and convenience. It employs the thermostat which is imported form Germany. The cooking temperature can be adjusted from 60¡æ to 320¡æ. Each compartment of the oven is installed with a pair of heating elements which are controlled separately. The bottom compartment is designed as an open cabinet for storing baking plates. According to your requirement, we can replace the bottom compartment with a fermentation room. There are four models that you can choose from. If you are interested in our products, welcome to contact us.

Features

  • Overall structure of stainless steel imported temperature controller
  • Two sets of upper and lower heater each of them can be independently control
  • Oven temperature can be set freely between 60¡æand 320¡æ, and automatically keep constant temperature
  • Lower oven can be replaced for fermentation box according to requirements. Combined with baking tray bracket at the bottom. Two type of door can be chosen: designed with visible glass window(C), completely stainless steel type£¨B£©

Specifications

Series HSQ

Model

Voltage

Rating

Size

Net Weight

HSQC111/B111

380-440V/3P/50-60Hz

5.2kw

800¡Á790¡Á1300mm

190kg

HSQC201/B201

380-440V/3P/50-60Hz

8.4kw

800¡Á790¡Á1350mm

200kg

HSQC211/B211

380-440V/3P/50-60Hz

9.4kw

800¡Á790¡Á1800mm

250kg

HSQC301/B301

380-440V/3P/50-60Hz

12.6kw

800¡Á790¡Á1800mm

270kg

HSQC1200

380-440V/3P/50-60Hz

24kw

1710¡Á1070¡Á1650mm

540kg


Series HSI

Model

Voltage

Rating (each deck)

Total Rating

Deck Dimension(mm)

Chamber Dimension(mm)

Overall Dimension

Net Weight(kg)

HSIPT22

220V/3PH/50/60Hz

4.8kw

14.4kw

800¡Á905¡Á500

550¡Á660¡Á290

800¡Á905¡Á1700

200

HSIPT40

400/415V/3PH/50Hz

HSIPT44

440V/3PH/60Hz

HSIPT48

480V/3PH/60Hz

Marine Electric Deck Oven

HSIPT22
