Marine Cooking Range with Oven (Four Hot Plates)
[Search Related Products]
Marine Cooking Range with Oven (Four Hot Plates)
Marine Cooking Range with Oven (Four Hot Plates) is suitable for small, medium and large vessels. The marine cooking range with oven (four hot plates) is whole stainless steel construction. Its cooktop is durable, anti-corrosion and resistant to high temperature. It equips a six-speed thermal control switch. It has overflow protection. The hot plates of the range is imported form Germany. It equips with handrails and racks. The bottom deck of the range is able to be designed as baking oven or cabinet. In addition to the marine cooking range with oven (four hot plates), we supply marine cooking range with oven (six hot plates). If you are interested in our products, welcome to contact us.
Features
• Complete stainless steel construction
• Imported hot plates and electric components
• A six-speed thermal control switch
• With handrails and racks
• Round hot plates of square hot plates
• Suitable for various kinds of vessels
Specifications
Model |
Voltage |
Rating |
Size(WกมDกมH) |
Weight |
HSA3 |
380-415V-3P-50Hz 440-480V-3P-60Hz |
5.2Kw |
700กม500กม850mm |
35kg |
HSA5 |
380-415V-3P-50Hz 440-480V-3P-60Hz |
10.4Kw |
700กม700กม850mm |
65kg |
HSA5/R |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.2Kw |
700กม700กม850mm |
105kg |
HSA7 |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.6Kw |
1050กม700กม850mm |
80kg |
HSA7/R |
380-415V-3P-50Hz 440-480V-3P-60Hz |
20.4Kw |
1050กม700กม850mm |
120kg |
HSB4B |
380-415V-3P-50Hz 440-480V-3P-60Hz |
10.4Kw |
700กม800กม850mm |
65kg |
HSB4B/O |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.2Kw |
700กม800กม850mm |
105kg |
HSB6B |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.6Kw |
1050กม800กม850mm |
80kg |
HSB6B/O |
380-415V-3P-50Hz 440-480V-3P-60Hz |
20.4Kw |
1050กม800กม850mm |
120kg |
HSD4FB |
380-415V-3P-50Hz 440-480V-3P-60Hz |
10.4Kw |
700กม700กม850mm |
90kg |
HSD4FB/R |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.2Kw |
700กม700กม850mm |
115kg |
HSD6FB |
380-415V-3P-50Hz 440-480V-3P-60Hz |
15.6Kw |
1060กม700กม860mm |
125kg |
HSD6FB/R |
380-415V-3P-50Hz 440-480V-3P-60Hz |
20.4Kw |
1050กม700กม850mm |
150kg |

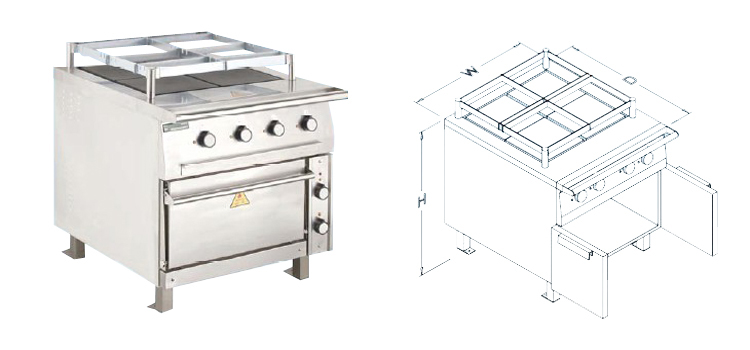

Pictures of Marine Cooking Range with Oven (Four Hot Plates)
HSD4FB/R
Marine Cooking Range with Oven (Four Round Hot Plates)
HSD4FB
Marine Cooking Range with Oven (Four Square Hot Plates)
