Marine Bronze Male Screw Thread Check Valve GB/T597-1983

[Search Related Products]

597

Marine Bronze Male Screw Thread Check Valve GB/T597-1983:

1.Design standard:GB600-82.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:4.0Mpa.

5.DN:10mm-32mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BS;
  • Disc:BC6.

7.Application:Sea water piping,fresh water piping,oil piping and steam piping.

8.Function:Such valves are used for preventing refluence.

9.Fundamental dimensions for Marine Bronze Male Screw Thread Check Valve GB/T597-1983:

DN/mm

Structure dimension

Thread jiont

Wrench size

mm

Lift

range

Weight

kg

L/mm

H/mm

H1/mm

D/mm

D1/mm

D2/mm

l/mm

l1/mm

Type A

Type B

Type A

Type B

Type A

Type B

m

Type A

Type B

10

94

47

54

20

41

M27x1.5

24.8

14

16

3

27

32

7

0.61

0.58

15

110

55

61

25

52

M36x2

33

22

22

5

32

41

10

1.00

0.94

20

116

58

65

32

55

M39x2

36

25

23

5

36

46

12

1.19

1.24

25

130

65

70

38

64

M48x2

45

32

26

6

46

50

14

1.71

1.58

32

140

70

84

46

72

M56x2

53

38

28

6

46

60

16

2.87

2.61

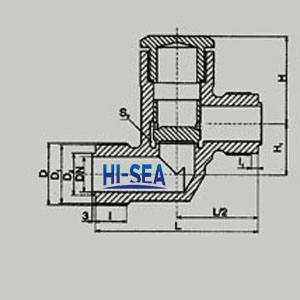

10.Drawing of Marine Bronze Male Screw Thread Check Valve GB/T597-1983:

Type A:

597A

Type B:

597B

11.Certificate available:

Certificate
