Marine Cast Bronze Suction Sea Valve GB/T 11692-1989

Marine Cast Bronze Suction Sea Valve GB/T 11692-1989:

1.Design standard:GB600-65.

2.End standard:GB569-65.

3.End type:Flange.

4.PN:0.4Mpa.

5.DN:50mm-400mm..

6.Main material:

Body/Bonnet:BC6;
Seat:BC6;
Stem:BS;
Disc:BC6.

7.Application:Sea water piping and fresh water piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Cast Bronze Suction Sea Valve GB/T 11692-1989:

DN mm	Structure dimension		Flange connection					Bolt		Hand wheel D₀/mm	Lift range m	Weight kg
DN mm	L/mm	H/mm	D/mm	D1/mm	D2/mm	b/mm	d_{0 /mm}	n	Th.	Hand wheel D₀/mm	Lift range m	Weight kg
50	125	230	140	110	90	16	14	4	M12	140	16	14
65	145	240	160	130	110	16	14	4	M12	140	20	17
80	155	260	190	150	128	18	18	4	M16	160	24	23
100	175	280	210	170	148	20	18	4	M16	180	30	28
125	200	310	240	200	178	20	18	8	M16	200	40	40
150	225	340	265	225	202	22	18	8	M16	225	48	66
200	275	375	320	280	258	22	18	8	M16	280	60	89
250	325	425	375	335	312	24	18	12	M16	360	70	133
300	375	480	440	395	365	24	22	12	M20	400	78	203
350	425	560	490	445	415	26	22	12	M20	450	100	272
400	475	640	540	495	465	28	22	16	M20	500	110	357

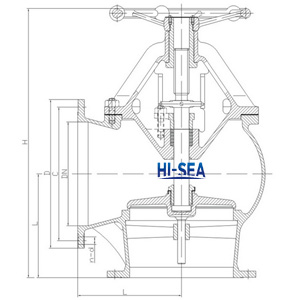

10.Drawing of Marine Cast Bronze Suction Sea Valve GB/T 11692-1989:

Marine Cast Bronze Suction Sea Valve GB/T 11692-1989

11.Certificate available:

Marine Cast Bronze Suction Sea Valve GB/T 11692-1989
