Marine Bronze Male Screw Thread Stuffing Cock GB598-1980

DN/mm

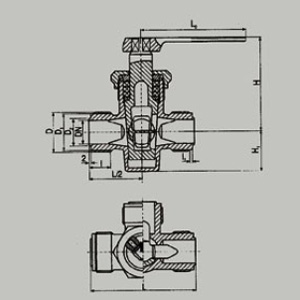

Structure dimension

Threa jiont

Handle

Weight/kg

L/mm

H1/mm

H/mm

D/mm

D1/mm

D2/mm

l/mm

L₀

Type A

Type T

Type L

6

70

20

60

M22x1.5

—

—

12

100

0.42

0.48

0.49

10

78

27

72

M27x1.5

—

—

15

110

0.69

0.71

0.72

15

92

37

92

M36x2

—

—

16

115

1.07

1.24

1.26

20

98

40

99

M36x2

33

24

20

125

1.52

1.70

1.72

25

106

42

108

M42x2

39

29

20

140

1.90

2.22

2.24

32

126

49

120

M48x2

45

36

20

160

3.47

3.79

3.89
